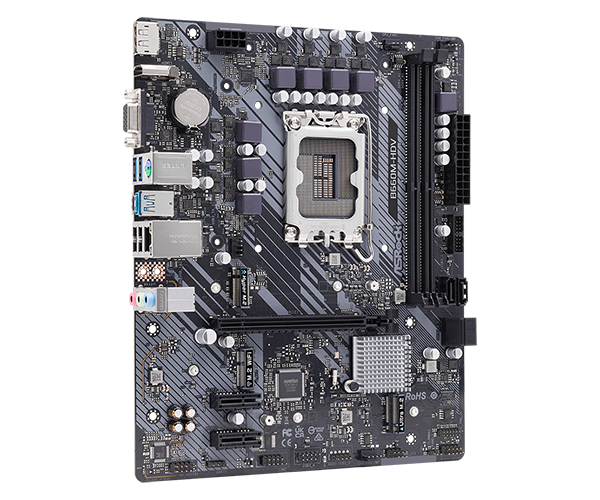

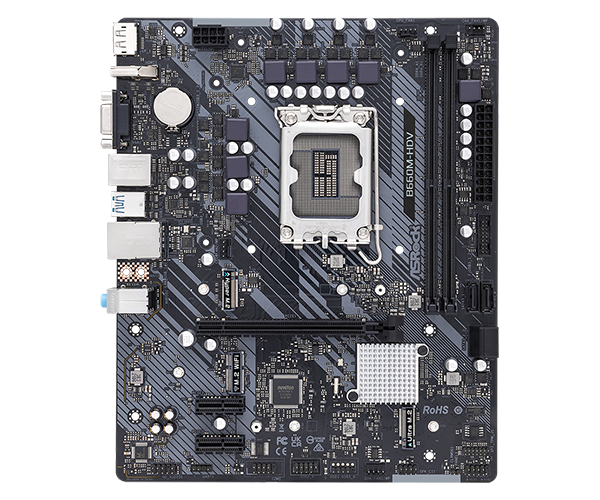

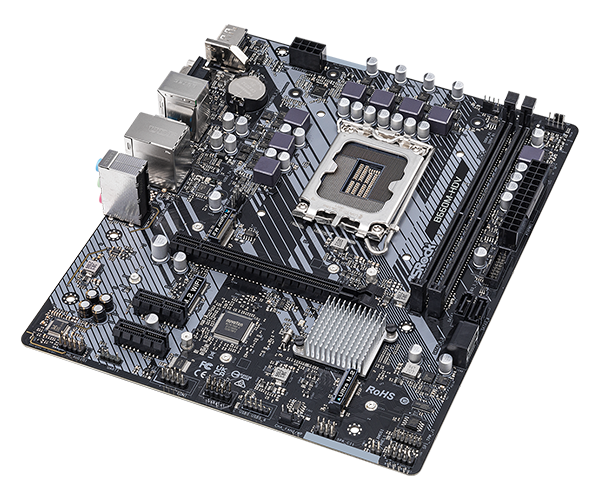

Asrock B660M-HDV Intel B660 LGA 1700 micro ATX


Brand: ASRock

RAM Memory Technology: DDR4

Compatible Processors: 12th Gen Intel Core

Chipset Type: Intel B660

Memory Speed: 2133 MHz

Platform: Windows 11

Series: B660 PRO RS

1 in stock

SKU: 90-MXBH40-A0UAYZ Categories: , , Tags: , , , ,


ASRock Super Alloy
– Premium Power Choke
– Sapphire Black PCB
– High Density Glass Fabric PCB
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop


– Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)

– Digi Power design

– 6 Power Phase design

– Supports Intel® Hybrid Technology

– Supports Intel® Turbo Boost Max 3.0 Technology



– Intel® B660


– Dual Channel DDR4 Memory Technology

– 2 x DDR4 DIMM Slots

– Supports DDR4 non-ECC, un-buffered memory up to 5066+(OC)*

– Supports ECC UDIMM memory modules (operate in non-ECC mode)

– Max. capacity of system memory: 64GB

– Supports Intel® Extreme Memory Profile (XMP) 2.0


*Supports DDR4 3200 natively.


– 128Mb AMI UEFI Legal BIOS with multilingual GUI support

– ACPI 6.0 Compliant wake up events

– SMBIOS 2.7 Support

– CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment


– Intel® Xe Graphics Architecture (Gen 12)

– Three graphics output options: D-Sub, HDMI and DisplayPort 1.4

– Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz

– Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680×4320) @ 60Hz / 5K (5120×3200) @ 120Hz

– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz

– Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports


*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
