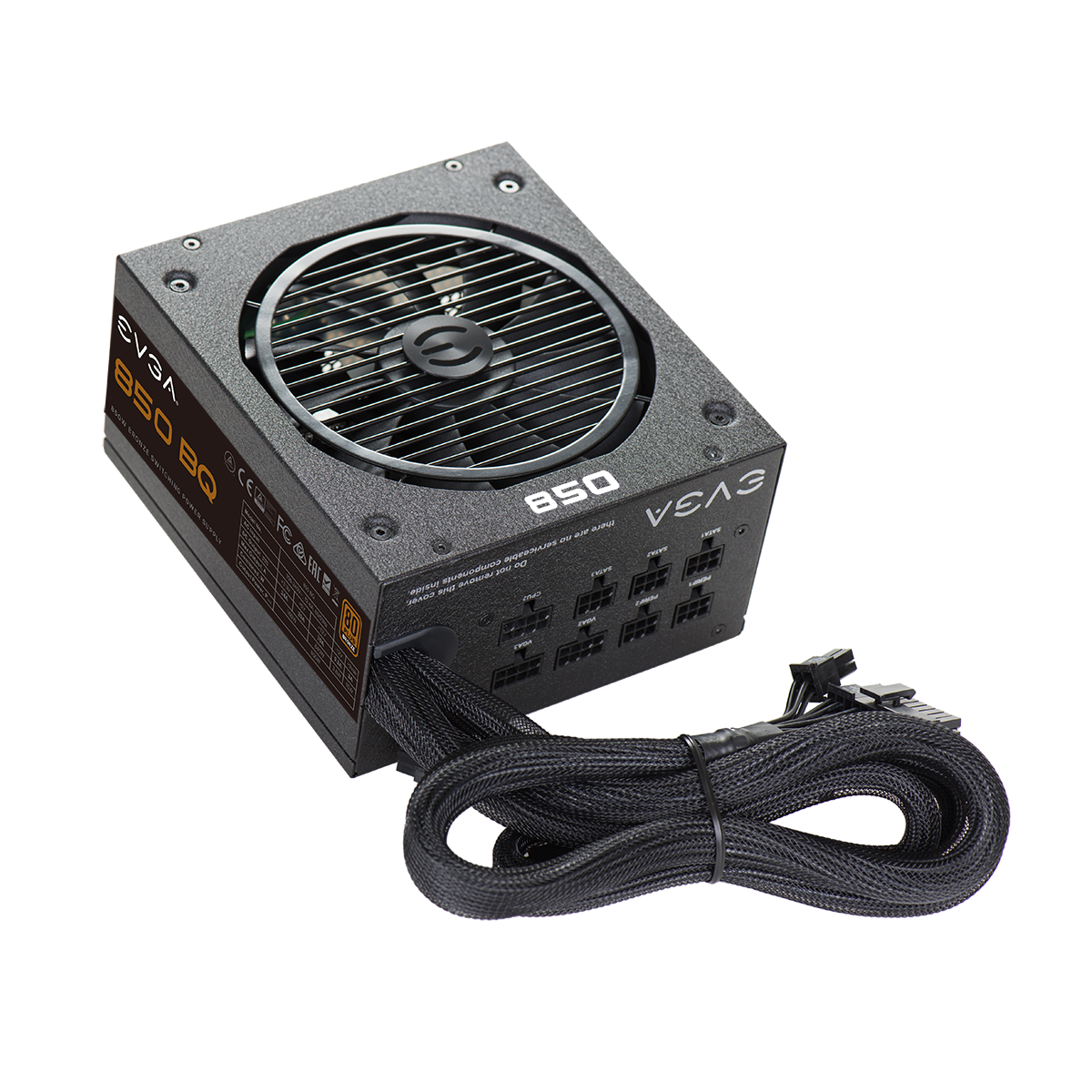

EVGA 850 BQ, 80+ BRONZE 850W, Semi Modular


Brand: EVGA
Model: 850 BQ
Watt: 850W
Certificate: 80  Bronze Plus
Cable Management: No Modular
Warranty: 2 years

1 in stock

SKU: 110-BQ-0850-V2 Categories: , , Tags: , , , ,


ATX Cable: 1x 550mm

EPS Cable: 2x 600mm

PCIE Cable: 3x 550mm, 700mm

SATA Cable: 1x500mm, 650mm, 800mm, 950mm, 2x 500mm, 650mm, 800mm

Four-Pin Peripheral Cable: 1x 550mm, 700mm, 1x 550mm, 700mm, 850mm + 1000mm (Floppy)

Floppy Adapter: 1x

AC Power: 1x 1800mm

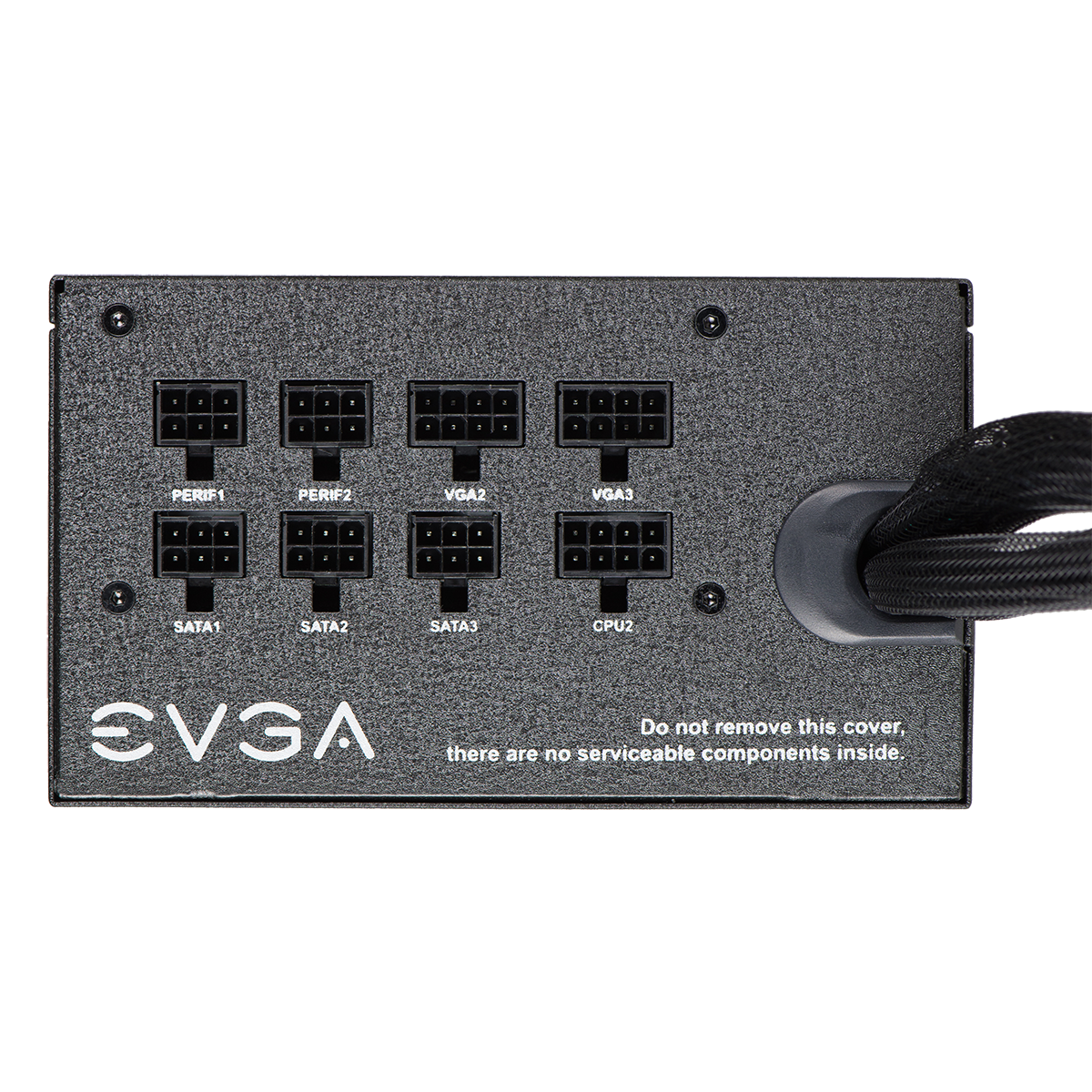

Modular Cable Type: Semi-Modular

24 Pin ATX: 1x

EPS (CPU): 2x8pin(4+4)

PCIE: 3x 8pin (6+2), 3x 6pin

SATA: 10x

Four-Pin Peripheral: 5x

Floppy: 1x

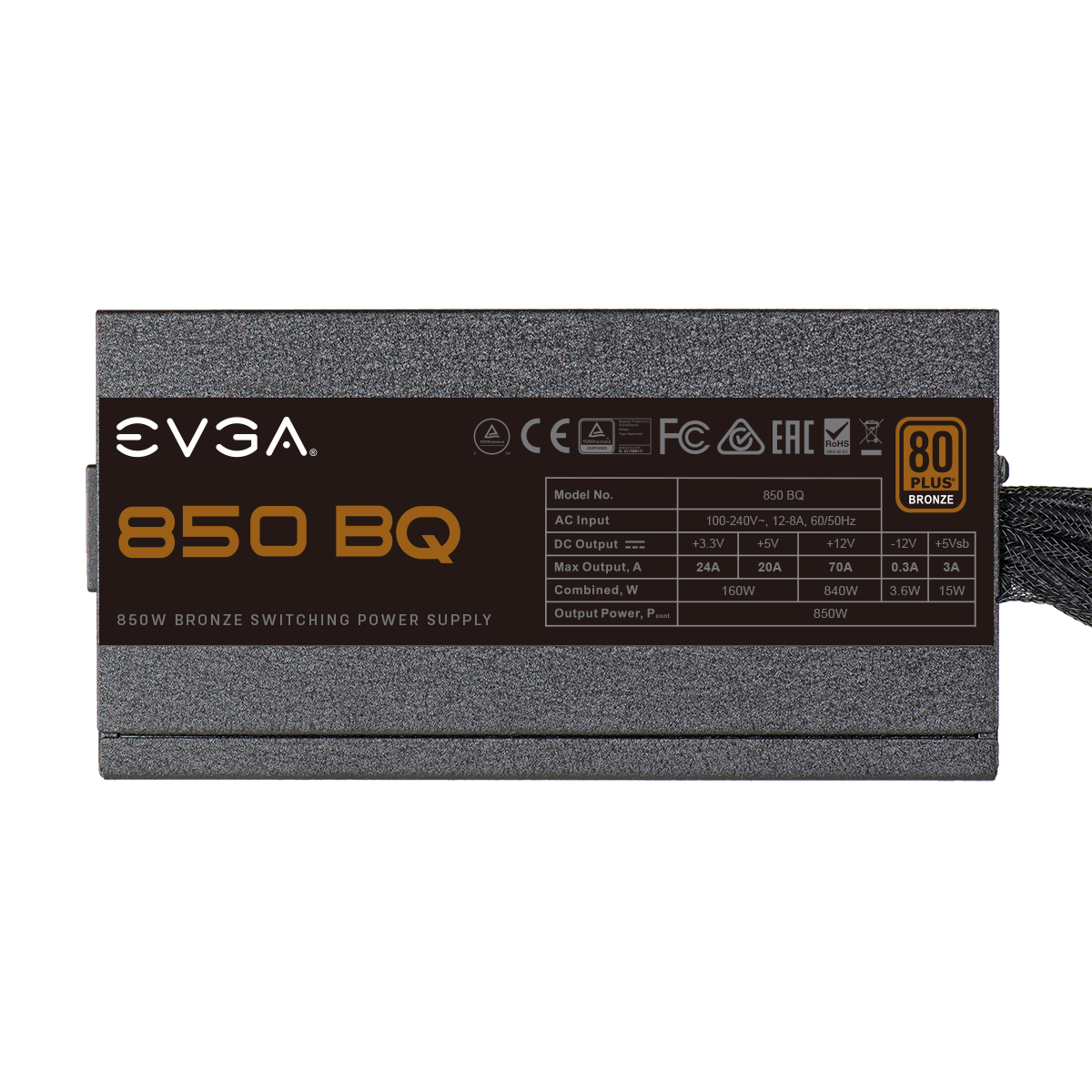

AC Input: 100 – 240 VAC, 12A, 50 – 60 Hz

Rail: +3.3V +5V +12V +5Vsb -12V

Max Output: 24A 20A 70A 3A 0.3A 70A

160W 840W 15W 3.6W

Total: 850W @ +40C

Operating Temperature: 0° to 40° C

Japanese Capacitors: Yes

ECO Mode: No

MTBF: 100,000 Hours

Net Weight: 7 lbs

Size: 85mm (H) x 150mm (W) x 165mm (L)

Approvals: TUV, CE, FCC, cTUVus, BSMI, CCC, WEEE, RoHS

Compliance with ErP Lot 6 2013 Requirement

Fan Size / Bearing: 140mm Teflon Nano-Steel Bearing

Additional information


Cable Managment

No Modular


80 Plus Bronze
