SPECIFICATIONS
| Brand: |
Gigabyte |
| Model: |
Z590M Gaming X |
| Type: |
mATX |
| BIOS type: | UEFI AMI |
| BIOS Memory Size: | 256 Mbit |
| ACPI version: | 5.0 |
| Clear CMOS Jumpers: | Yes |
| Desktop Management Interface (DMI) version: | 2.7 |
| System management BIOS (SMBIOS) version: | 2.7 |
| Processor Manufacturer: | Intel |
| Processor Socket: | LGA 1200 |
| Compatible Processors: | Intel® Celeron® / Intel® Core ™ i3 / Intel Core i5 / Intel Core i7 / Intel Core i9 / Intel® Pentium® |
| Supported Processor Slots: | LGA 1200 (Socket H5) |
| Supported RAM: | DDR4 SDRAM |
| Number Of Memory Slots: | 4th |
| RAM Type: | DIMM |
| Memory Channels: | Dual-channel |
| Supported Memory Speed: | 2133 / 2400 / 2666 / 2933 /3000 /3200 MHz |
| RAM Memory Maximum: | 128 GB |
| Supported Storage Drives: | HDD & SSD |
| Supported Storage Drive Interfaces: | M.2 / Serial SATA III |
| Number Of Storage Drives Supported: | 8th |
| RAID Level: | 0 / 1 / 5 / 10 |
| Parallel Processing Technology: | 2-Way CrossFireX / Quad-GPU CrossFireX |
| Graphics Card Family: |
Intel
|
| Maximum Resolution: | 4096 x 2304 pixels |
| Internal I/O Connections: | RGB LED pin header /2 x USB 2.0 Interfaces / 2 x USB 3.2 Gen 1 (3.1 Gen 1) ports / 6xSATA III connectors / S / PDIF from plug / Front Panel Audio Connector / Front Panel Connector / ATX Power Plug (24-pin) / CPU Fan Connector /3 x Chassis Fan Plugs / 2 x Thunderbolt Headers /1 x Serial Port Headers / 12V Power Connection / TPM connector |

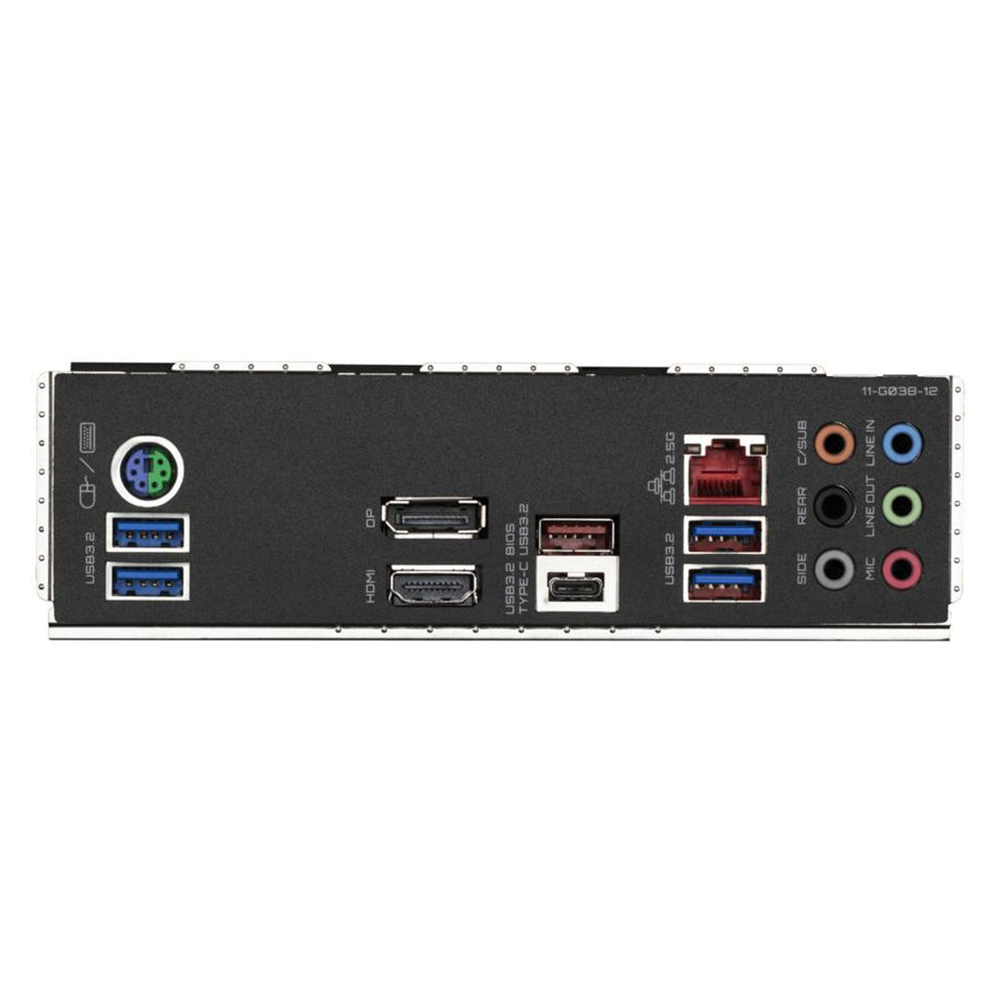

| I/O Ports On The Back: | 4 x USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports / 1 x USB 3.2 Gen 2 (3.1 Gen 2) Type-A Slots / 1 x USB 3.2 Gen 2 (3.1 Gen 2) Type C Slots / 1 x Ethernet LAN connections (RJ-45) /1 x PS/2 Connection / 1 x HDMI Version 1.4 / 1 x DisplayPort Version 1.2 /6 x Headphone Outputs |
| Network: | Built-in ethernet connection / 2.5 Gigabit Ethernet Interface |
| Motherboard chipset family | Intel |
| Motherboard chipset: | Intel Z590 Express |
| Audio channels: | 7.1 channels |
| PC health monitoring: | Fan, temperature, voltage |
| Expansion Slots: | 2 x M.2 slots /2 x PCI-Express x1 slots / 2 x PCI-Express x16 slots |
| Dimensions(W x D): | 244 X244mm |
| Warranty: | 2 Years |
