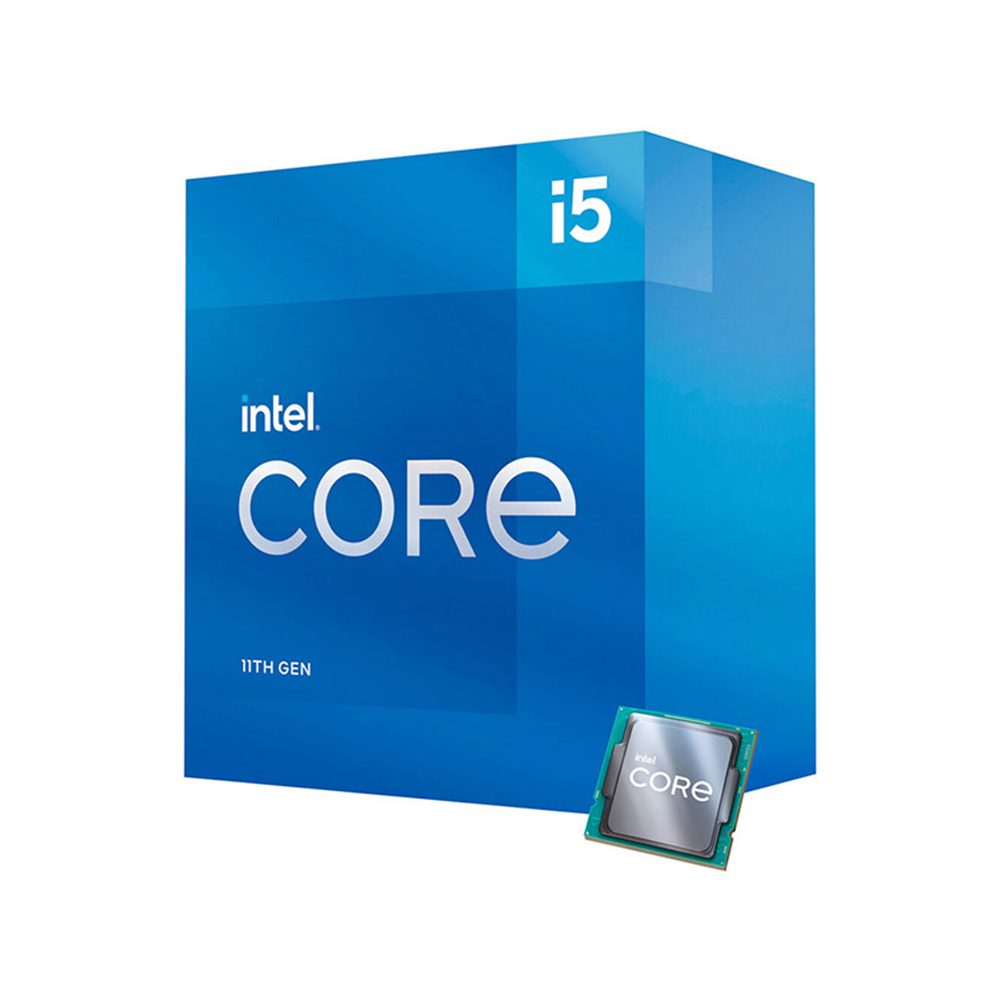

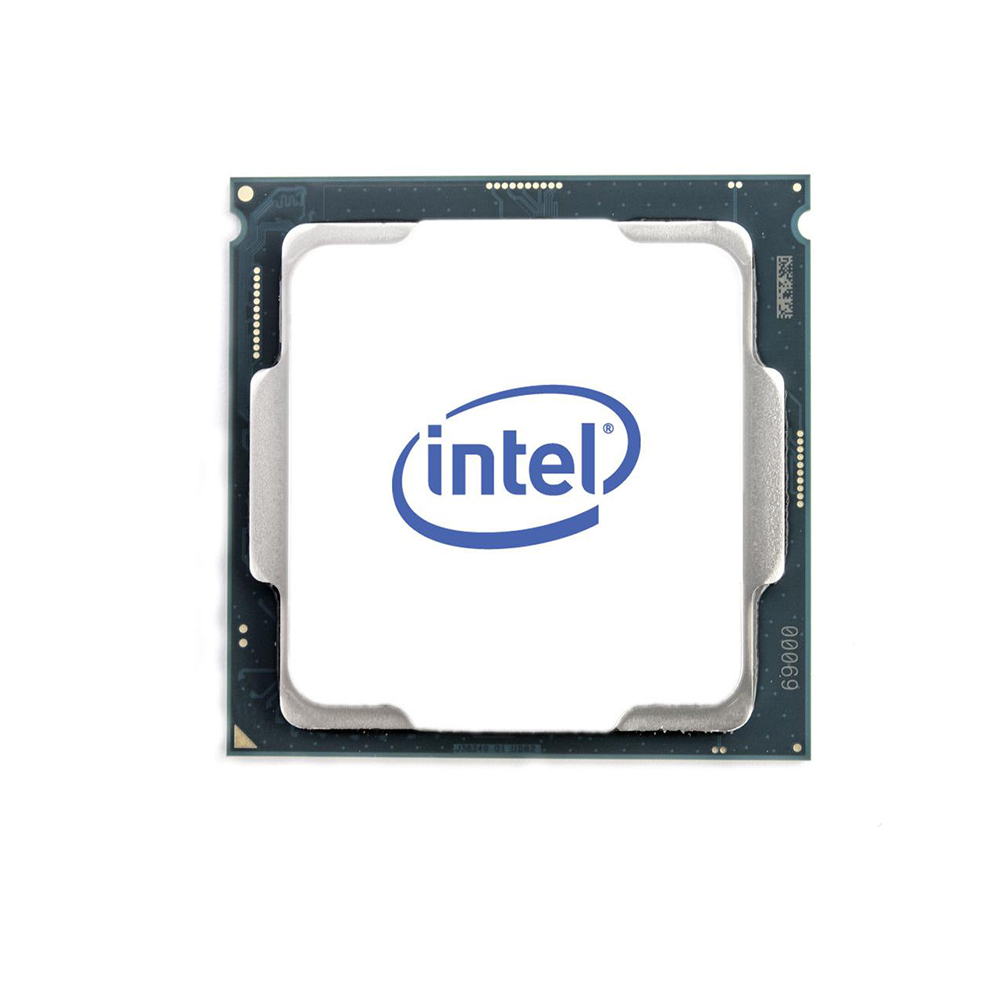

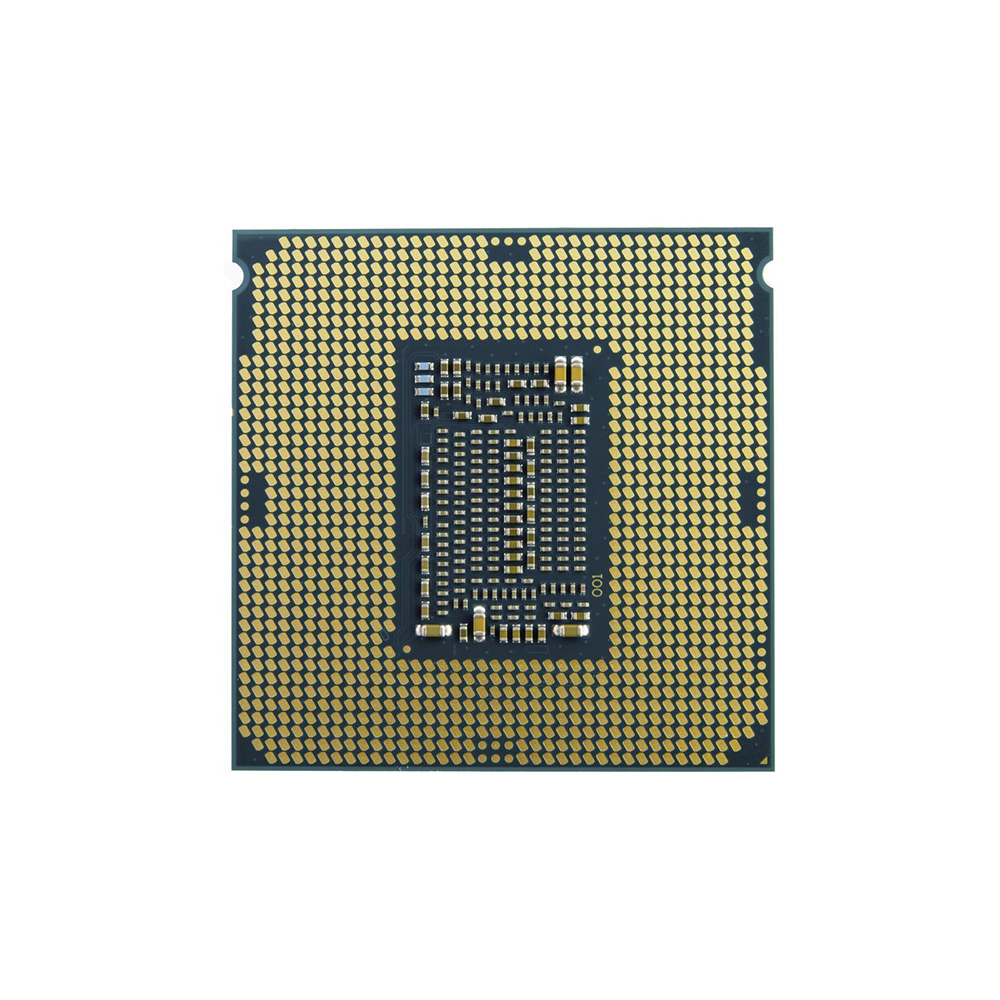

Intel Core i5 11400 LGA1200 12MB Cache 2.6GHz


Brand: Intel
Model: i5-11400
Cores: 6
Threads: 12
Processor Frequency Base: 2.6GHz
Max Processor Frequency: 4.4GHz
Max Memory Size: 128GB
Memory Type: DDR4-3200MHz
Max Number of Memroy Channel:  Dual Channel
Graphics: Intel UHD Graphics 730
Graphics base frequency: 350 MHz
Maximum dynamic graphics frequency:1.20 GHz
Maximum resolution: 5120 x 3200 pixels
Socket Supported:  LGA1200
Warranty: 2 years

2 in stock

SKU: CM8070804497015 Categories: , , Tags: , , , ,


Processor Family: 11th generation Intel® Core ™ i5 processors
Processor Base Frequency: 2.6 GHz
Number Of CPU Cores: 6th
Processor Socket: LGA 1200 (Socket H5)
Component For: PC
Processor Lithography: 14 nm
Processor: i5-11500
Processor Threads: 12th
System Bus Rate: 8 GT / s
Processor Operating Modes: 64-bit
Processor Boost Frequency: 4.4 GHz
Processor Cache: 12 MB
Processor Cache Type: Smart cache
Thermal Design Power (TDP): 65 W
Memory Bandwidth Supported By The Processor (max): 50 GB / s
ARK Processor Detection: 212270
Maximum Internal Memory Supported By The Processor: 128 GB
Memory Types Supported By The Processor: DDR4 SDRAM
Memory Clock Rates Supported By The Processor: 3200 MHz
Memory Channels: Dual-channel
Memory Bandwidth (max.): 50 GB / s
Built-in Graphics Adapters: Yes
Separate Graphics Adapter: No
On-board Graphics Adapter Model: Intel UHD Graphics 730
Maximum Integrated Graphics Adapter Memory: 64 GB
On-board Graphics Adapter Base Frequency: 350 MHz
Maximum Dynamic Frequency Of The On-board Graphics Adapter: 1300 MHz
Number Of Supported Displays (on-board graphics): 3
4K Support Through On-board Graphics Adapter: Yes
On-board Graphics Adapter OpenGL Version: 4.5
Maximum Resolution Of The On-board graphics adapter (eDP – integrated flat screen): 5120 x 3200 pixels
Integrated Graphics Adapter Maximum Resolution (HDMI): 4096 x 2160 pixels
Maximum Resolution Of The On-board Graphics Adapter (DisplayPort): 5120 x 3200 pixels
Refresh Rate Of The On-board Graphics Adapter At Maximum Resolution (DisplayPort): 60 Hz
Refresh Rate Of The On-board Graphics Adapter At Maximum Resolution (HDMI): 60 Hz
Refresh Rate Of The On-board Graphics Adapter At Maximum Resolution (eDP – integrated flat screen): 60 Hz
On-board Graphics Adapter Device ID: 0x4C8B
Dedicated Graphics Adapter Model: Not Available
Number Of Arithmetic Units: 24
Execute Disable Bit: Yes
Idle States: Yes
Thermal Monitoring Technologies: Yes
Market Segment: Desktop
Use Conditions: PC / Client / Tablet
Maximum Number Of PCI Express Lanes: 20th
PCI Express Slots Version: 4.0
PCI Express Configurations: 1×16 + 1×4.2×8 + 1×4.1×8 + 3×4
Supported Instruction Sets: SSE4.1, SSE4.2, AVX 2.0, AVX-512
Scalability: 1s
Embedded Options Available: No
CPU Configuration (max): 1
Harmonized System Code: 8542310001
Export Control Classification Number (ECCN): 5A992CN3
Automated Tracking Goods Classification System (CCATS): G167599
Intel® AES New Instructions (Intel® AES-NI): Yes
Intel® Hyper-Threading Technology (Intel® HT Technology) Yes
Intel® InTru ™ 3D technology: Yes
Intel® Turbo Boost Technology: 2.0
Intel® Quick Sync Video Technology: Yes
Intel® Identity Protection Technology (Intel® IPT): Yes
Intel® Trusted Execution Technology: No
Intel® Clear Video HD Technology for (Intel® CVT HD): Yes
Improved Intel Speed Step technology: Yes
Intel® Thermal Velocity Boost: No
Intel® Turbo Boost Technology 2.0 Frequency: 4.4 GHz
Intel® Gaussian & Neural Accelerator (Intel® GNA) 2.0: Yes
Intel® VT-x with Extended Page Tables (EPT): Yes
Intel® vPro ™ Platform Eligibility: No
Intel® 64: Yes
Intel® Optane ™ Memory Ready: Yes
Intel® Virtualization Technology (VT-X): Yes
Intel® Software Guard Extensions (Intel® SGX): No
Intel Turbo Boost Max Technology 3.0: No
Intel® Boot Guard: Yes
Intel® Virtualization Technology For Direct I/O (VT-d): Yes
Intel Stable Image Platform Program (SIPP): No
Intel® Secure Key: Yes
Intel® OS Guard: Yes
Intel® Clear Video Technology: Yes
Intel® Deep Learning Boost (Intel® DL Boost): Yes
Supported RAM: DDR4 SDRAM
Target Market: Gaming
Status: Launched
Start Date: Q1’21
RAM Memory Maximum: 128 GB
Warranty: 2 years
Additional information



Core i5

Motherboard Connection

Socket LGA1200
