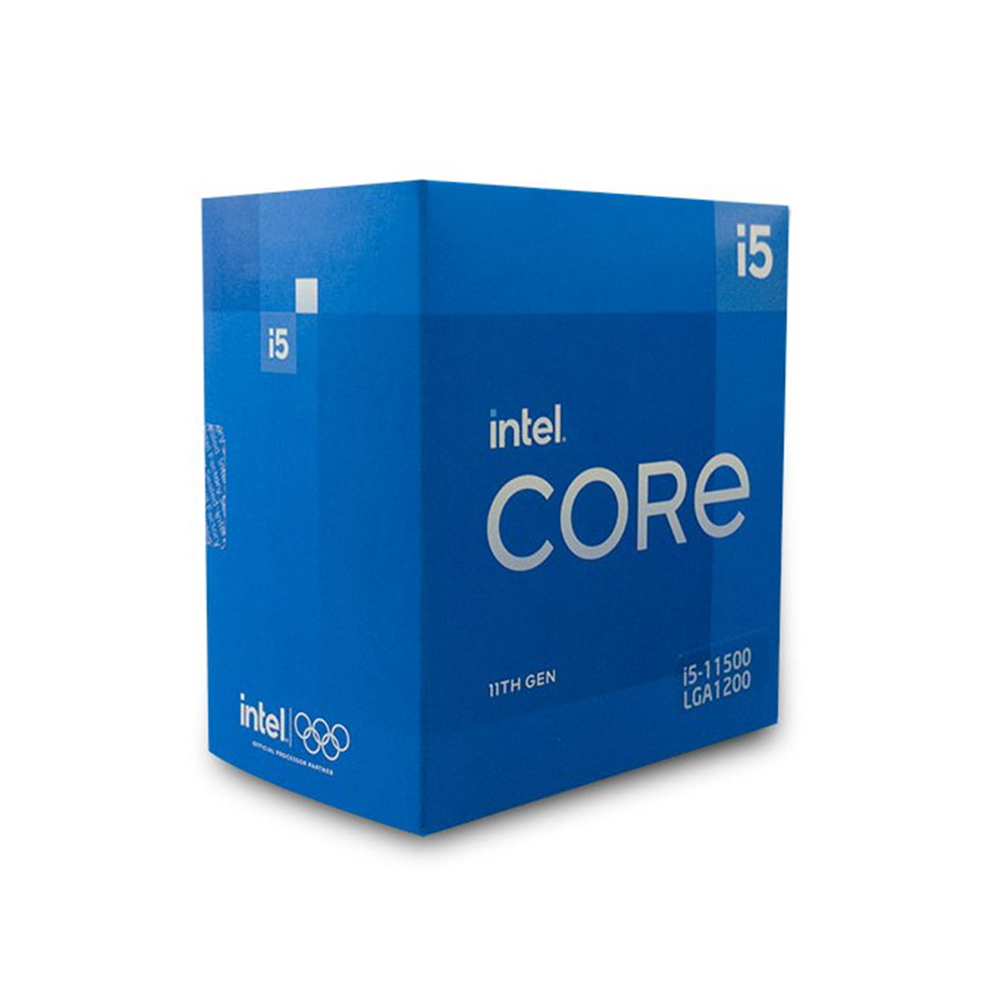

Intel Core i5 11500 LGA1200 12MB Cache 2.7GHz


Brand: Intel
Model: I5-11500
Cores: 6
Threads: 12
Processor Frequency Base: 2.7GHz
Max Processor Frequency: 4.6GHz
Max Memory Size: 128GB
Memory Type: DDR4-3200
Max Number of Memroy Channel:  Dual Channel
Graphics:Intel UHD Graphics 750
Graphics base frequency:350 MHz
Maximum dynamic graphics frequency:1.20 GHz
Maximum Integrated Graphics Adapter Memory:64 GB
Maximum resolution: 5120 x 3200 pixels
Socket Supported:  LGA1200
Warranty: 3 years

Out of stock

SKU: CM8070804496809 Categories: , ,


Processor Family: 11th generation Intel® Core ™ i5 processors
Processor Base Frequency: 2.7 GHz
Number Of CPU Cores: 6th
Processor Socket: LGA 1200 (Socket H5)
Component For: PC / Thin Client / Tablet
Processor Lithography: 14 nm
Processor: i5-11500
Processor Threads: 12th
System Bus Rate: 8 GT / s
Processor Operating Modes: 64-bit
Processor Cache: 12 MB
Processor Cache Type: Smart Cache
Thermal Design Power (TDP): 65 W
Processor Boost Frequency: 4.6 GHz
Memory Bandwidth Supported By The Processor (Max): 50 GB / s
ARK Processor detection 212277
Maximum Internal Memory Supported By The Processor: 128 GB
Memory Types Supported By The Processor: DDR4 SDRAM
Memory Clock Rates Supported By The Processor: 3200 MHz
Memory Channels: Dual-Channel
Memory Bandwidth (max.) 50 GB / s
Built-in Graphics Adapters: Yes
On-board Graphics Adapter Model: Intel UHD Graphics 750
Maximum Integrated Graphics Adapter Memory: 64 GB
On-board Graphics Adapter Base Frequency: 350 MHz
Maximum Dynamic Frequency Of The On-board Graphics Adapter: 1300 MHz
Number Of Supported Displays (On-board Graphics): 3
On-board Graphics Adapter OpenGL Version: 4.5
Integrated Graphics Adapter Maximum Resolution (HDMI): 4096 x 2160 pixels
Maximum Resolution Of The On-board Graphics Adapter (eDP – integrated flat screen): 5120 x 3200 pixels
Maximum Resolution Of The On-board Graphics Adapter (DisplayPort): 5120 x 3200 pixels
Refresh Rate Of The On-board Graphics Adapter At Maximum Resolution (eDP – integrated flat screen): 60 Hz
Refresh Rate Of The On-board Graphics Adapter At Maximum Resolution (HDMI): 60 Hz
Refresh Rate Of The On-board Graphics Adapter at maximum resolution (DisplayPort) 60 Hz
On-board Graphics Adapter Device ID: 0x4C8A
Number Of Arithmetic Units: 32
Execute Disable Bit: Yes
Idle States: Yes
Thermal Monitoring Technologies: Yes
Maximum Number Of PCI Express Lanes: 20th
PCI Express Slots Version: 4.0
PCI Express Configurations: 1×16 + 1×4.2×8 + 1×4.1×8 + 3×4
Supported Instruction Sets: SSE4.1, SSE4.2, AVX 2.0, AVX-512
CPU Configuration (Max): 1
Scalability: 1S
Harmonized System Code|: 8542310001
Export Control Classification Number (ECCN): 5A992CN3
Automated Tracking Goods Classification System (CCATS): G167599
Intel® Turbo Boost Technology: 2.0
Intel® Quick Sync Video Technology: Yes
Intel® Clear Video HD Technology for (Intel® CVT HD): Yes
Intel® Identity Protection Technology (Intel® IPT): Yes
Intel® AES New Instructions (Intel® AES-NI): Yes
Improved Intel Speed Step technology: Yes
Intel® Trusted Execution Technology: Yes
Intel® Hyper-Threading Technology (Intel® HT Technology): Yes
Intel® InTru ™ 3D Technology: Yes
Intel® Thermal Velocity Boost: No
Intel® Turbo Boost Technology 2.0 frequency: 4.6 GHz
Intel® Gaussian & Neural Accelerator (Intel® GNA) 2.0: Yes
Intel® Optane ™ Memory Ready: Yes
Intel® Secure Key: Yes
Intel® vPro ™ Platform Eligibility: Yes
Intel® OS Guard: Yes
Intel® 64: Yes
Intel® Virtualization Technology for Direct I/O (VT-d): Yes
Intel® Boot Guard: Yes
Intel® VT-x with Extended Page Tables (EPT) Yes
Intel Turbo Boost Max Technology 3.0: No
Intel® Deep Learning Boost (Intel® DL Boost): Yes
Intel Stable Image Platform Program (SIPP): Yes
Intel® Software Guard Extensions (Intel® SGX): No
Intel® Virtualization Technology (VT-X): Yes
Intel® Clear Video Technology: Yes
Temperature: 100 °C
Packaging type: Retail box
Supported RAM: DDR4 SDRAM
Target Market: Gaming
RAM Memory Maximum: 128 GB
Warranty: 3 years
Additional information



Core i5

Motherboard Connection

Socket LGA1200
