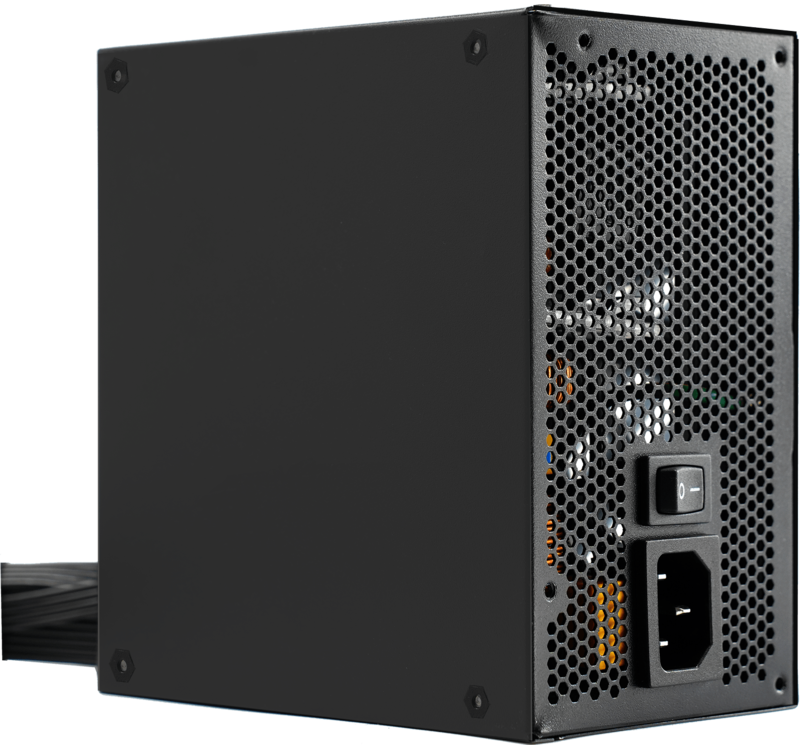

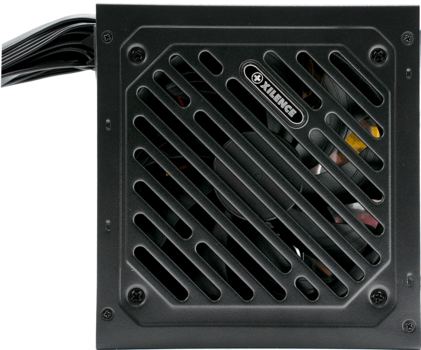

PSU XILENCE 750W Gaming GOLD ATX 2.52 (XN330)

Description

• Total power: 750 W

  AC input voltage: 200 – 240 V

  AC input frequency: 50 Hz

  Input current: 6.3 A

  Power Factor Correction (PFC) type: Active

  Combined power (+3.3V): 66 W

  Combined power (+5V): 100 W

  Combined power (-12V): 6 W

  Combined power (+5Vsb): 15 W

  Max output current (+12V): 62.5 A

  Power protection features: Over power, Over voltage, Short circuit, Under voltage

  Ports & interfaces

  Motherboard power connector 20-pin ATX

  Motherboard power cable length             5.5 cm

  Number of SATA power connectors         6

  PCI Express power connectors (6+2 pin) 3

  CPU power connector (4+4 pin)

  ATX power connector (20+4 pin)

  Floppy disk drive connector

  PCI Express connector

  Cabling type       Modular

  Performance

  Purpose               PC

  Power supply unit (PSU) form factor        ATX

  80 PLUS certification       80 PLUS Gold

  Supported motherboard form factors     ATX

  ATX version        2.52

  Silent mode

  Bearing technology         HDB
