SPECIFICATIONS
| Brand: | Tenda |
| Model: | AC8 |
| Standard & Protocol: | IEEE802.3，IEEE802.3u，IEEE802.3ab |

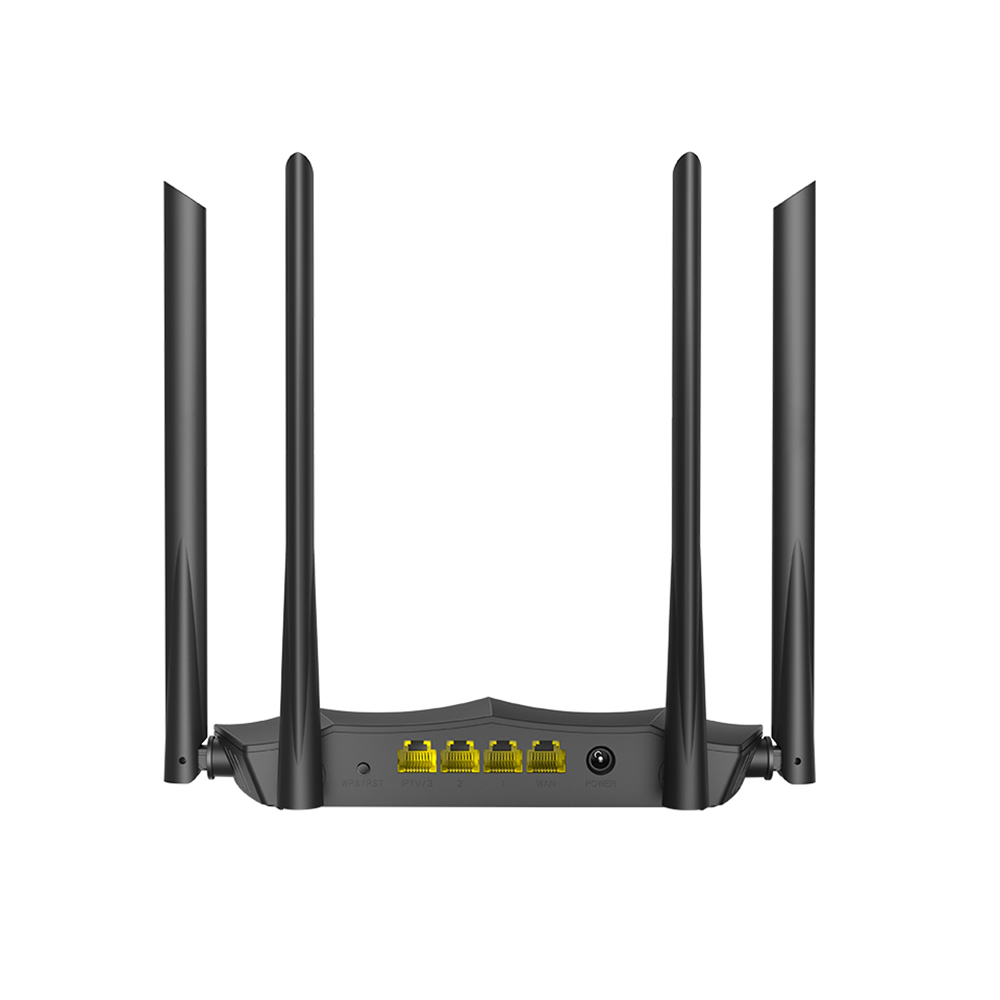

| Interfaces: | 1*10/100/1000Mbps WAN port 3*10/100/1000Mbps LAN ports |

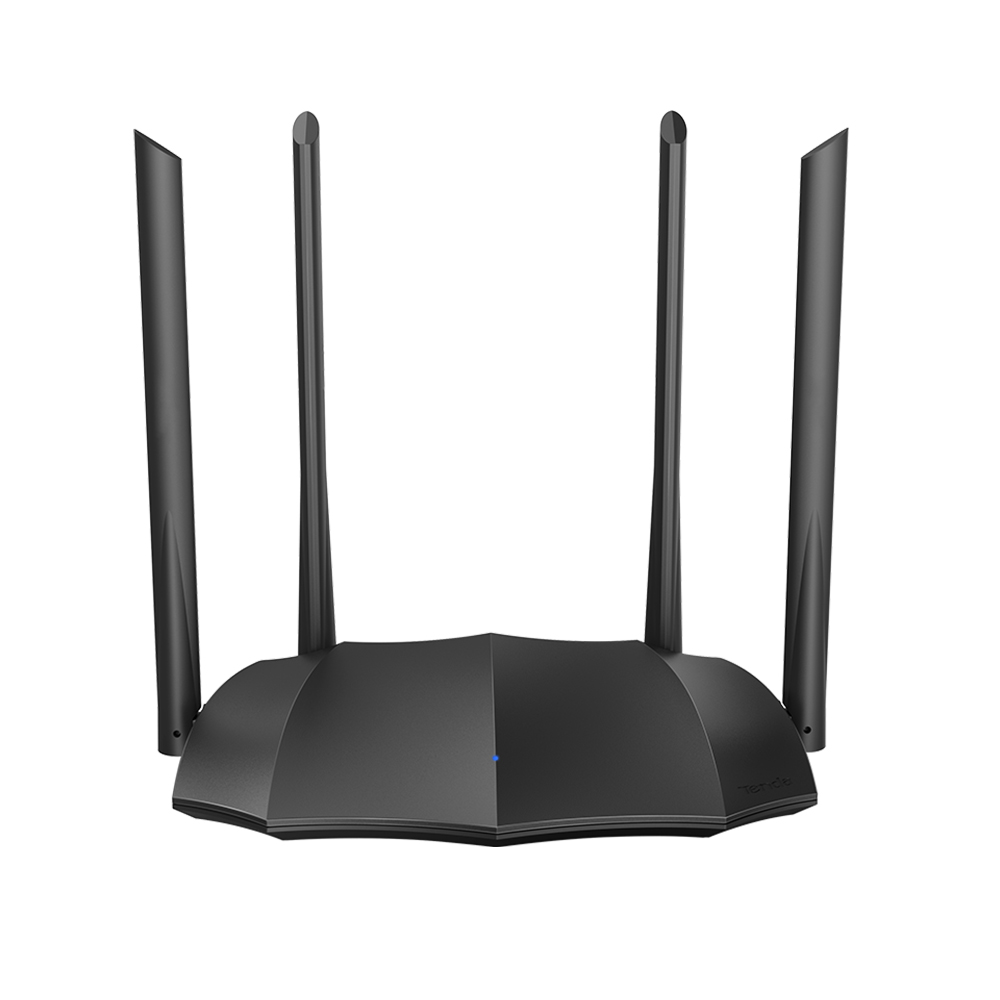

| Antenna: | 4*6dBi external dual band antennas |
| Button: | 1*WPS/Reset button |
| Power: | Input: AC 100-240V—50/60Hz Output: DC 9V 1A |
| LED Indicator: | 1*LED |
| Wireless Standard: | IEEE 802.11ac/a/n @5GHz IEEE 802.11b/g/n @2.4GHz |
| Data Rate: | 5GHz: 867Mbps 2.4GHz: 300Mbps |
| Frequency: | 2.4GHz & 5GHz |
| Transmission Power: | CE: <20dBm(2.4G) <23dBm(5G) FCC: <30dBm |
| Basic Features: | SSID Broadcast: Enable/Disable Transmission Power: high, medium, low Beamforming MU-MIMO |
| Wireless Security: | WPA-PSK/WPA2-PSK, WPA/WPA2 Wireless Security : Enable /Disable |
| Internet Connection Type: | PPPoE, Dynamic IP, Static IP Support automatic access detection Supports broadband account automatic transfer |
| Operating Mode: | Wireless Router Mode Universal Repeater Mode WISP Mode AP Mode |
| DHCP Server: | DHCP Server DHCP Client List DHCP Reservation |
| Virtual Server: | Port Forwarding DMZ Host UPnP |
| Security: | Client Filter（supports black list and white list） Parental Control（supports black list and white list） Remote Web Management |
| Firewall: | Forbid UDP flood attack Forbid TCP flood attack Forbid flood attack Forbid WAN PING from internet |
| DDNS: | Support DynDNS, 88ip |
| VPN: | IPsec pass through PPTP pass through L2TP pass through PPTP client L2TP client |
| Special Features: | PPPoE Username/password Clone Smart WiFi Schedule Smart Power Saving Smart LED on/off Tenda Cloud Tenda App |
| Others: | Broadband management MAC address clone System Log Backup & Restore configurations Firmware upgrade from local |
| Temperature: | Operating Environment:0℃~40℃ Storage Environment:-40℃~70℃ |
| Humidity: | Operating Humidity:10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90%RH non-condensing. |
| Default Settings: | Default Access: tendawifi.com or http://192.168.0.1 |
| Certification: | CE，FCC，CCC |
| EIRP Power (Max): | 2.400-2.4835GHz: 19.95dBm (EIRP) 5.150-5.250GHz: 22.90dBm (EIRP) |
| Dimension (L*W*H): | 200x127x33.6mm |
| Warranty: | 2 year |
