Sold out

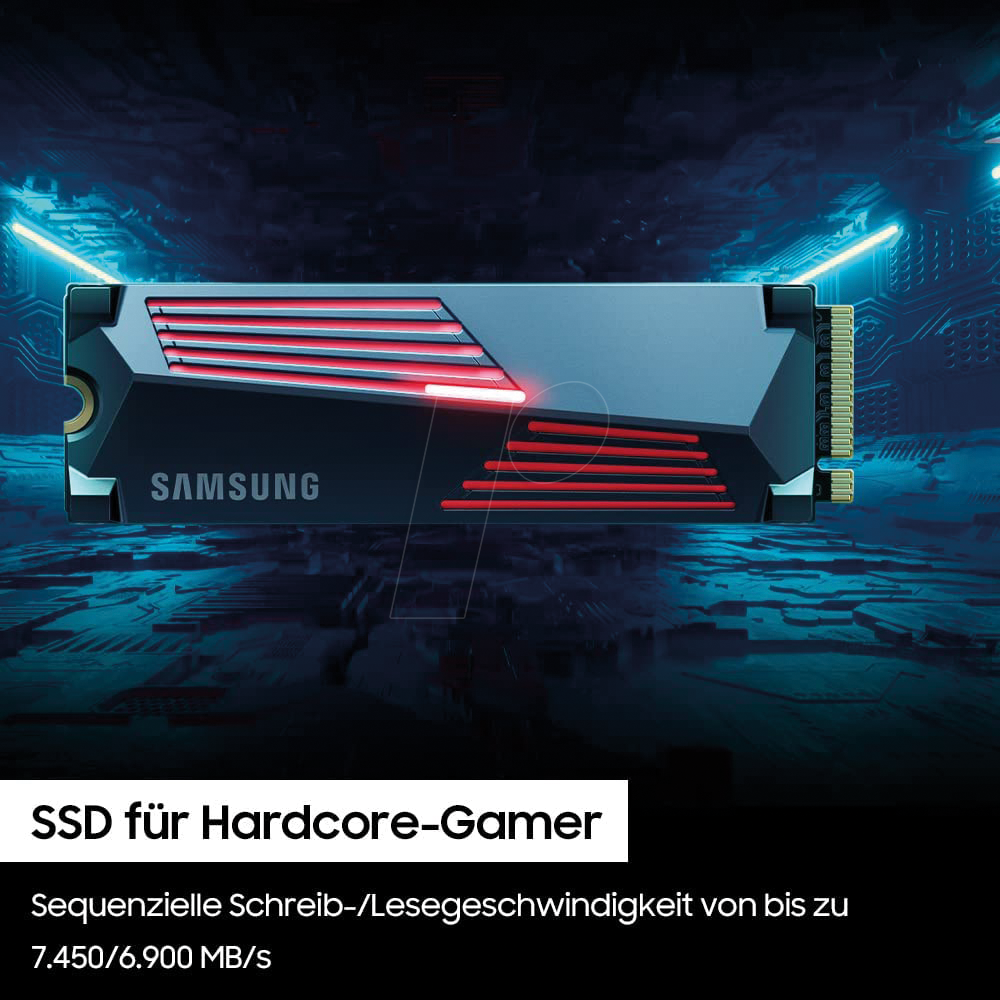

990 PRO with Heatsink NVMe M.2 SSD 1TB MZ-V9P1TOCW


Digital Storage Capacity:  1 TB

Hard Disk Interface:  Solid State

Connectivity Technology:  SATA

Brand:  Samsung

Special Feature: Fast Speed

Hard Disk Description:  Solid State Hard Drive

Compatible Devices:  Laptop, Desktop

Installation Type:  Internal Hard Drive

Colour:  Black

Hard Disk Size:  1 TB

Out of stock

SKU: MZ-V9P1TOCW Categories: , , Tags: , , , ,


Device Type Solid state drive – internal
Capacity 1 TB
Hardware Encryption Yes
Encryption Algorithm 256-bit AES
NAND Flash Memory Type Multi-level cell (MLC)
Integrated Heatsink Yes
Form Factor M.2 2280
Interface PCIe 4.0 x4 (NVMe)
Features Sleep mode, Auto Garbage Collection Algorithm, Dynamic Thermal Guard protection, 1 GB Low Power DDR4 SDRAM Cache, Samsung V-NAND 3bit MLC Technology, S.M.A.R.T., NVMe 2.0
Width 24.3 mm
Depth 80 mm
Height 8.2 mm
Weight 28 g
Performance Performance
Internal Data Rate 7450 MBps (read) / 6900 MBps (write)
Maximum 4KB Random Write 1550000 IOPS
Maximum 4KB Random Read 1200000 IOPS
Reliability Reliability
MTBF 1,500,000 hours
Expansion & Connectivity Expansion & Connectivity
Interfaces PCI Express 4.0 x4 (NVMe)
Compatible Bay M.2 2280
Power Power
Power Consumption 5.4 Watt (read) ¦ 5 Watt (write) ¦ 50 mW (idle) ¦ 5 mW (L1.2 mode)
Software & System Requirements Software & System Requirements
Software Included Samsung Magician Software
Miscellaneous Miscellaneous
Compliant Standards IEEE 1667
Package Details Box
Manufacturer Warranty Manufacturer Warranty
Service & Support Limited warranty – 5 years / 600 TBW
Environmental Parameters Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 70 °C
Min Storage Temperature -40 °C
Max Storage Temperature 85 °C
Humidity Range Operating 5 – 95% (non-condensing)
Shock Tolerance (non-operating) 1500 g
Vibration Tolerance (non-operating) 20 g @ 20-2000 Hz
Compatibility Information Compatibility Information
Designed For Sony PlayStation 5
Additional information


Hard Drive Type



1 TB
