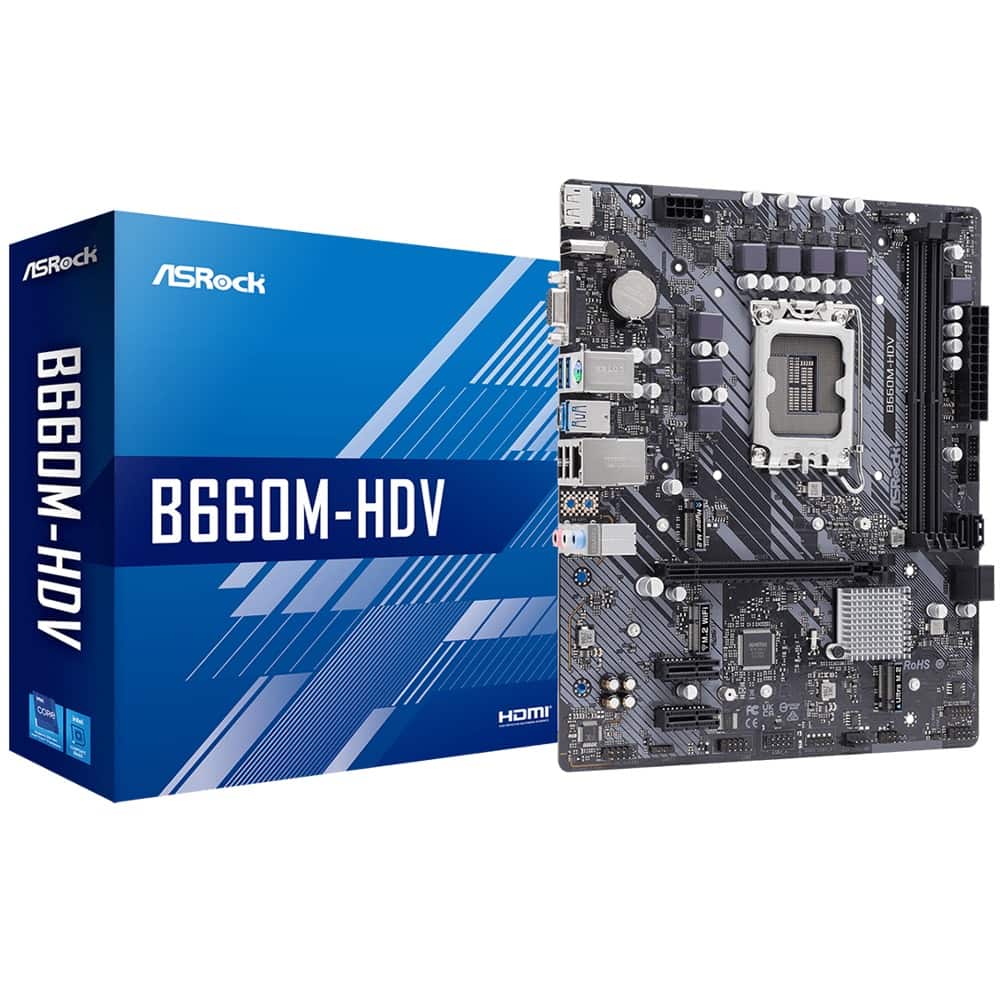

Asrock B660M-HDV Intel B660 LGA 1700 micro ATX 90-MXBH40-A0UAYZ


Brand: ASRock

RAM Memory Technology: DDR4

Compatible Processors: 12th & 13th Gen Intel Core

Chipset Type: Intel B660m

Memory Speed: 2133 MHz

Out of stock

SKU: 90-MXBH40-A0UAYZ Categories: , , Tags: , , , , ,


ASRock Super Alloy
– Premium Power Choke
– Sapphire Black PCB
– High Density Glass Fabric PCB
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop


– Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)

– Digi Power design

– 6 Power Phase design

– Supports Intel® Hybrid Technology

– Supports Intel® Turbo Boost Max 3.0 Technology



– Intel® B660


– Dual Channel DDR4 Memory Technology

– 2 x DDR4 DIMM Slots

– Supports DDR4 non-ECC, un-buffered memory up to 5066+(OC)*

– Supports ECC UDIMM memory modules (operate in non-ECC mode)

– Max. capacity of system memory: 64GB

– Supports Intel® Extreme Memory Profile (XMP) 2.0


*Supports DDR4 3200 natively.


– 128Mb AMI UEFI Legal BIOS with multilingual GUI support

– ACPI 6.0 Compliant wake up events

– SMBIOS 2.7 Support

– CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment


– Intel® Xe Graphics Architecture (Gen 12)

– Three graphics output options: D-Sub, HDMI and DisplayPort 1.4

– Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz

– Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680×4320) @ 60Hz / 5K (5120×3200) @ 120Hz

– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz

– Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports


*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Additional information





Intel Celeron, Intel Core I3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium, Intel Pentium G


Micro ATX
