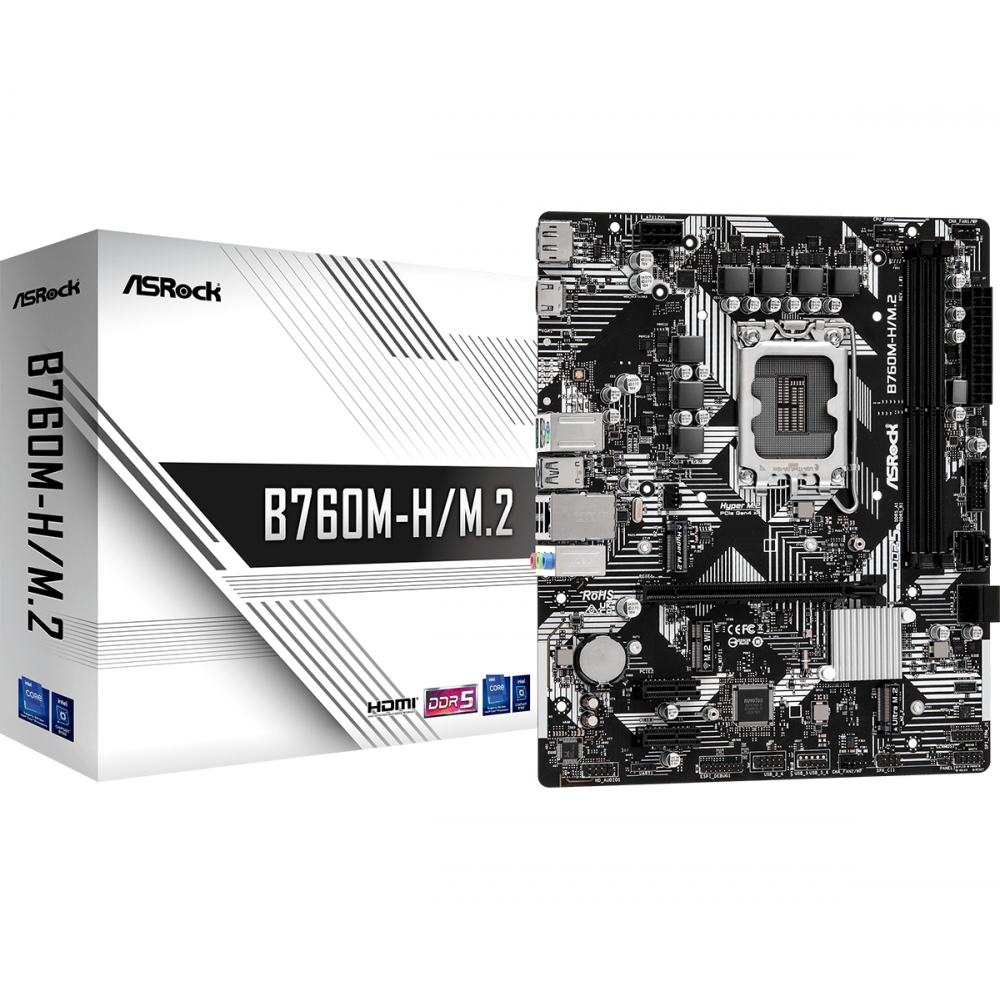

ASROCK B760M-H/M.2 / MOTHERBOARD / MICRO ATX / LGA1700 SOCKET / B760 CHIPSET

162,00

Brand: ASRock
Model: B560M Pro 4
Type: M-ATX
Processor Manufacturer: INTEL
Processor Socket: LGA 1200 (Socket H5)
Compatible Processors:INTEL
Warranty: 2 Years

1 in stock

SKU: 90-MXBM40-A0UAYZ Categories: , , Tag:
Description

SPECIFICATIONS

Product Type Motherboard – micro ATX
Chipset Type Intel B760
Processor Socket LGA1700 Socket
Max Processors Qty 1
Compatible Processors (supports 12th and 13th Generation Intel Core)
Supported RAM Supported RAM
Max Size 96 GB
Technology DDR5
Bus Clock 5200 MHz (O.C.), 5600 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.)
Supported RAM Integrity Check Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered Unbuffered
Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode
Audio Audio
Type HD Audio (8-channel)
Audio Codec Realtek ALC897
Compliant Standards High Definition Audio
LAN LAN
Network Controller Realtek RTL8111H
Network Interfaces Gigabit Ethernet
Expansion / Connectivity Expansion / Connectivity
Expansion Slots 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2230 M.2 Key E slot) ¦ 2 x M.2 socket (2260/2280 M.2 Key M slot)
Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA – RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2
Interfaces 1 x PS/2 keyboard / mouse ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen 1 ¦ 3 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x microphone – mini-jack ¦ 1 x audio line-in – mini-jack ¦ 1 x audio line-out – mini-jack
Internal Interfaces 2 x USB 3.2 Gen 1 – header ¦ 3 x USB 2.0 – header ¦ 1 x SPI – header ¦ 1 x speaker – header ¦ 1 x audio – header
Power Connectors 24-pin main power connector, 8-pin ATX12V connector
Features Features
BIOS Type AMI
BIOS Features UEFI BIOS
Hardware Features ASRock Instant Flash, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock EZ Mode, 5+1+1 Phase Power Design, ASRock Auto Driver Installer
Miscellaneous Miscellaneous
Included Accessories 3 x M.2 screws, IO shield
Cables Included 2 x Serial ATA cable
Software Included ASRock A-Tuning, ASRock XFast LAN
Compliant Standards FCC, EuP Ready, ErP Ready, DisplayPort 1.4, HDCP 2.3
Width 24.4 cm
Depth 20.1 cm
Additional information
Brand

ASROCK

Socket

LGA1200

Processor

Intel Core i9

Size

Micro ATX
