SPECIFICATIONS
Brand: |
ASROCK |
Model: |

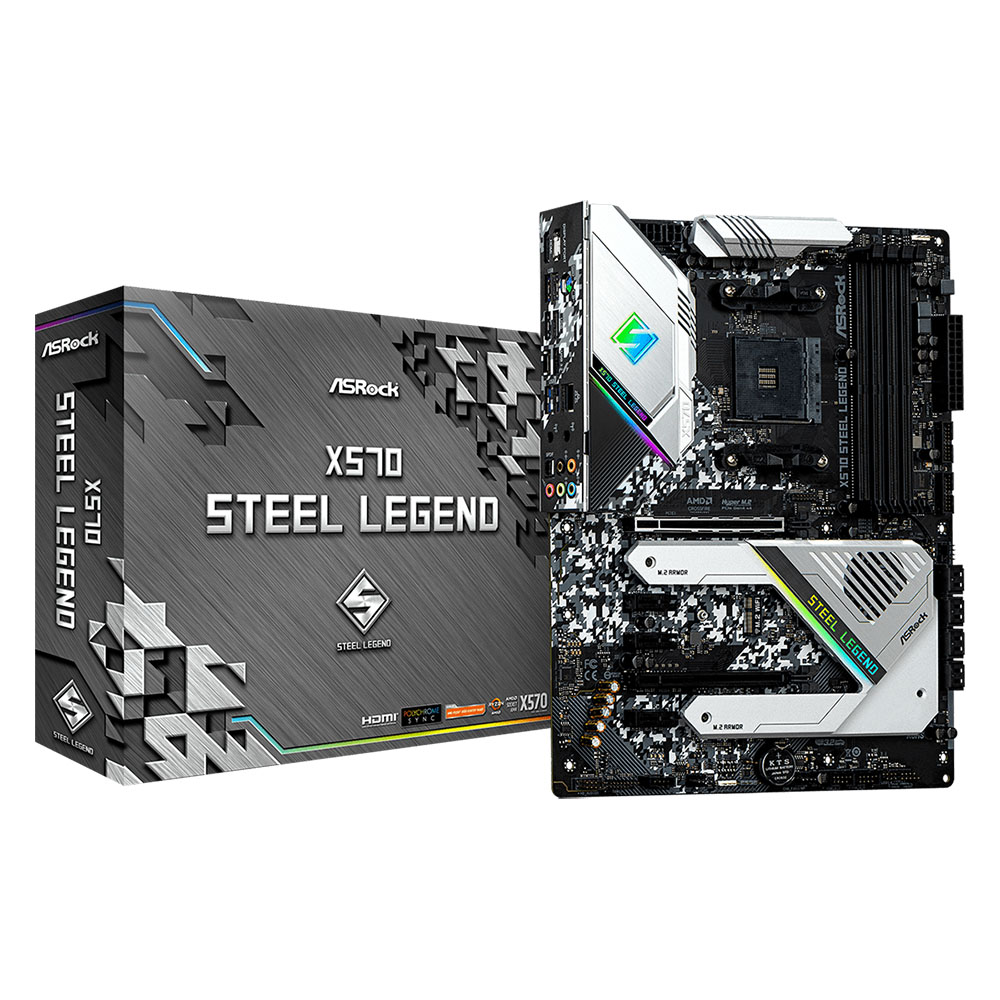

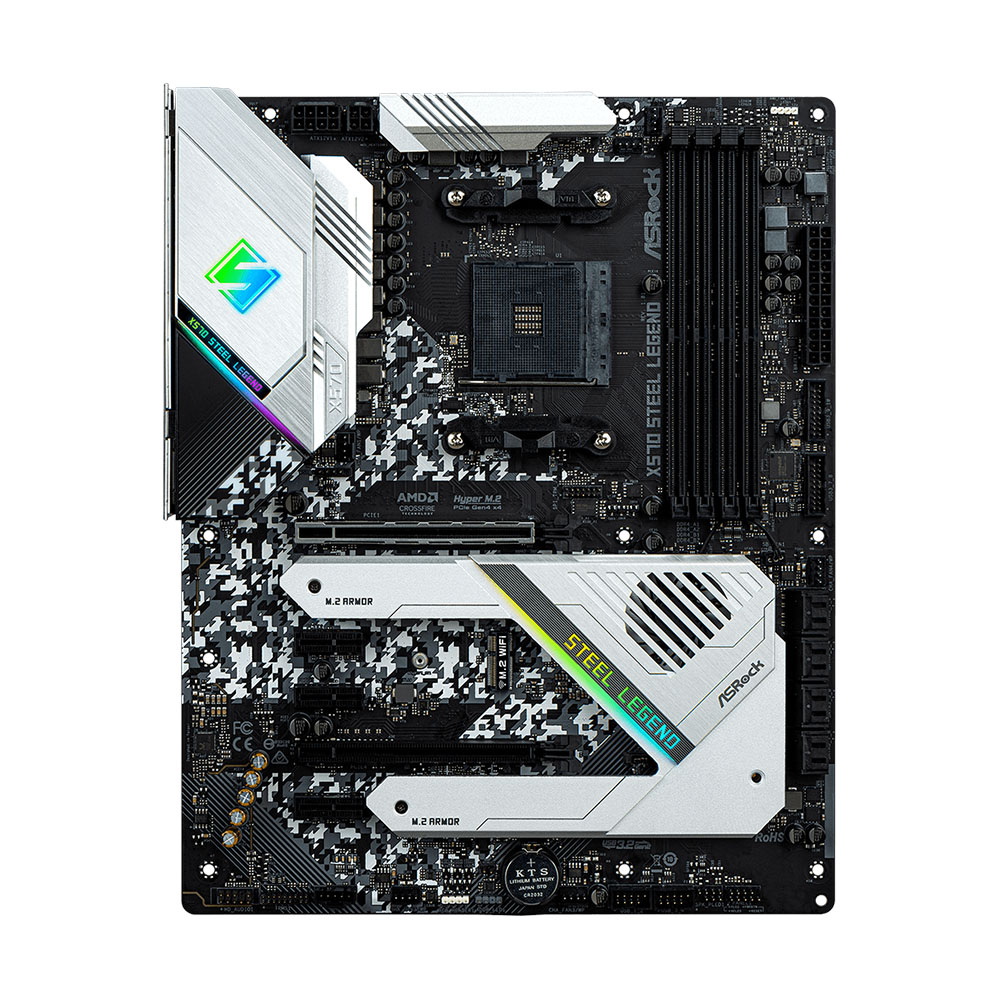

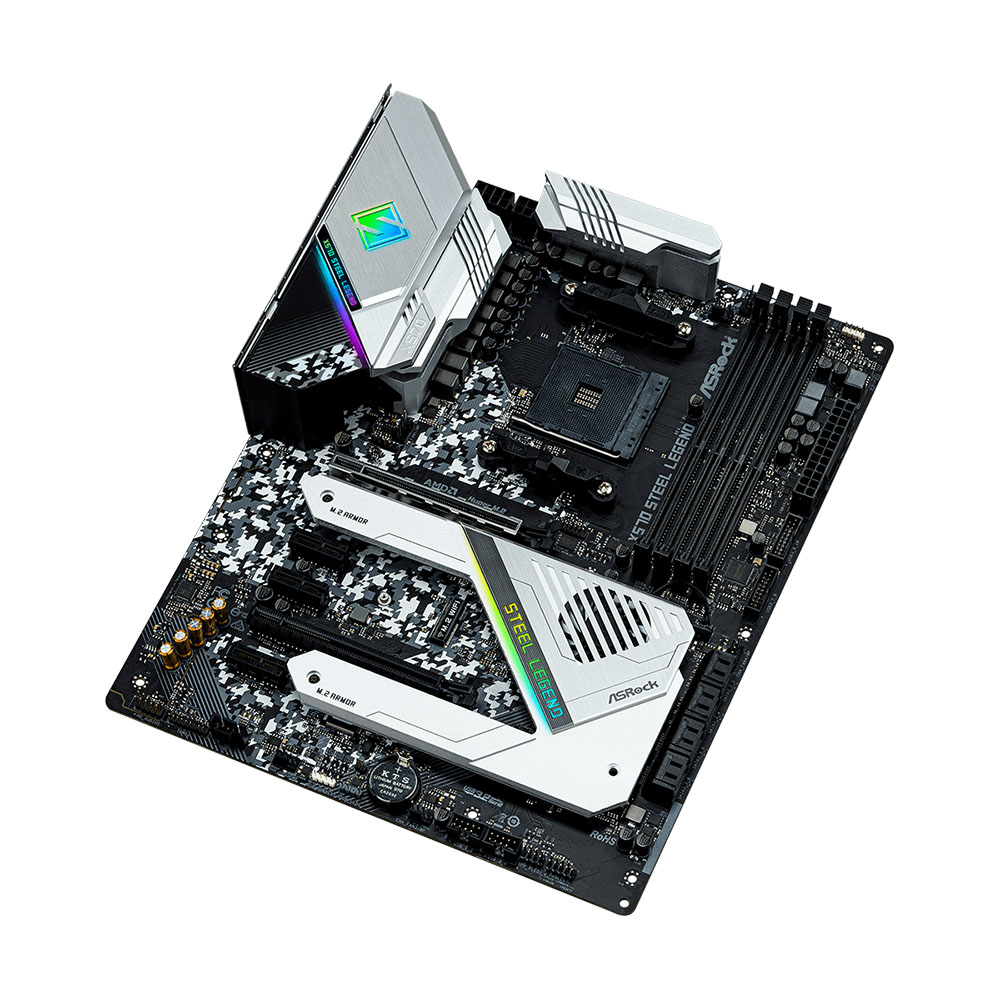

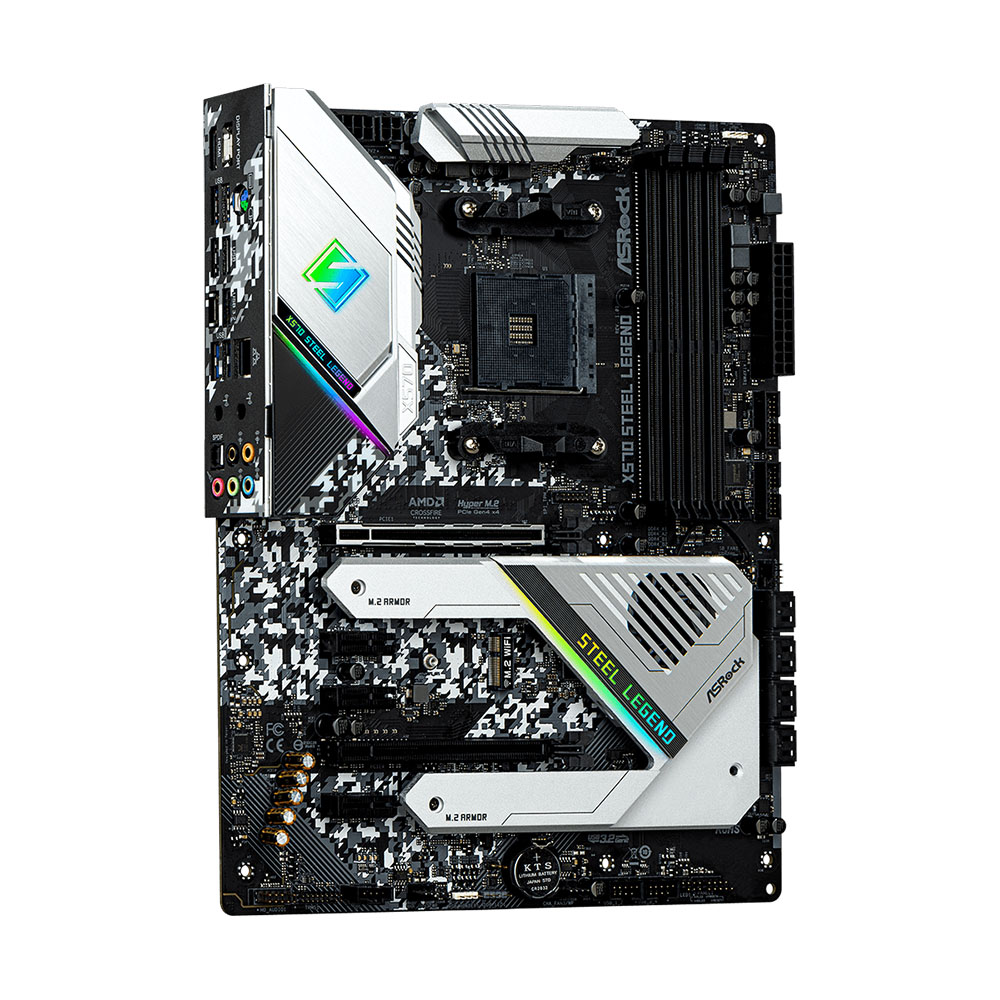

X570 Steel Legend |
Type: |
ATX Form Factor (30.5 cm x 24.4 cm) |
Processors: |
Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series and 5000 Series Desktop Processors |
Chipset: |
AMD X570 |
Memory: | Dual Channel DDR4 Memory Technology / 4 x DDR4 DIMM Slots / AMD Ryzen series CPUs (Vermeer) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* / AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* / AMD Ryzen series APUs (Renoir) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* / AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* / AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory* / Max. capacity of system memory: 128GB** / Supports Extreme Memory Profile (XMP) memory modules / 15μ Gold Contact in DIMM Slots |
Disk Support: | 8 x SATA3 6.0 Gb/s Connectors / Support RAID (RAID 0, RAID 1 and RAID 10) / NCQ / AHCI and Hot Plug / 1 x Hyper M.2 Socket (M2_1) / supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso) / 1 x Hyper M.2 Socket (M2_2) / Supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) |
Expansion ports: | AMD Ryzen series CPUs (Matisse): 2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4)) / AMD Ryzen series CPUs (Pinnacle Ridge): 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4)) / AMD Ryzen series CPUs (Picasso): 2 x PCI Express 3.0 x16 Slots (single at x8 (PCIE1); dual at x8 (PCIE1) / x4 (PCIE4)) / 3 x PCI Express 4.0 x1 Slots / 1 x M.2 Socket (Key E) / supports type 2230 WiFi/BT module / 15m Gold Contact in VGA PCIe Slot (PCIE1) |
Internal connections: | 1 x Power LED and Speaker Header / 1 x AMD Fan LED Header / 1 x RGB LED Header / 1 x Addressable LED Header / 1 x CPU Fan Connector (4-pin) / 1 x CPU/Water Pump Fan Connector (4-pin) / 4 x Chassis/Water Pump Fan Connectors (4-pin) / 1 x 24 pin ATX Power Connector / 1 x 8 pin 12V Power Connector / 1 x 4 pin 12V Power Connector / 1 x Front Panel Audio Connector (15m Gold Audio Connector) / 1 x AMD LED Fan USB Header / 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 3 AIC Card R2.0 only) / 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) / 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) / 1 x SPI TPM Header |

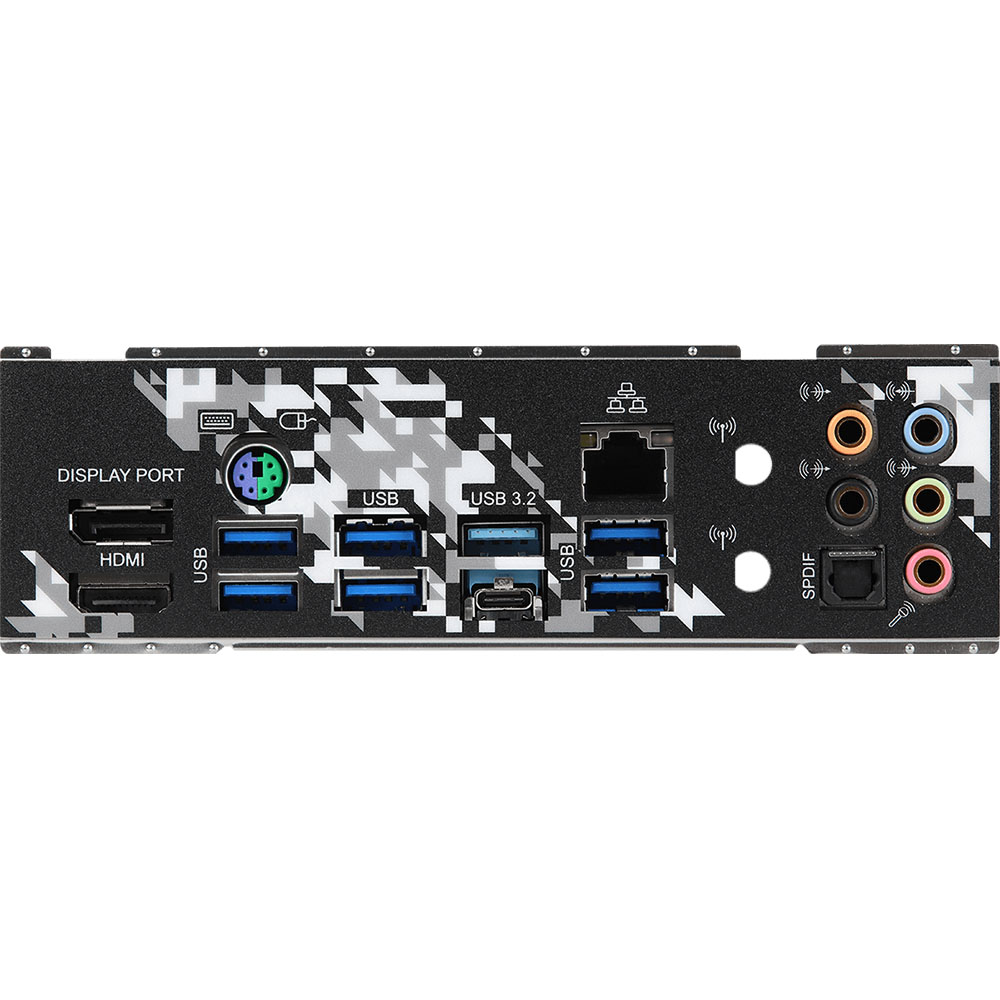

External connections: | 2 x Antenna Ports (on I/O Panel Shield) / 1 x PS/2 Mouse/Keyboard Port, 1 x HDMI Port / 1 x DisplayPort 1.2 / 1 x Optical SPDAF Out Port / 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) / 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) / 6 x USB 3.2 Gen1 Ports (Supports ESD Protection) / 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) / HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
Graphics: | Integrated Graphics |
Built-in sound: | 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) |
Built-in network card: | Gigabit LAN 10/100/1000 Mb/s, GigaLAN Intel I211AT |
Operating system: | Microsoft Windows 10 64-bit |
Warranty: | 3 years |
