SPECIFICATIONS
Brand: |
ASROCK |
Model: |

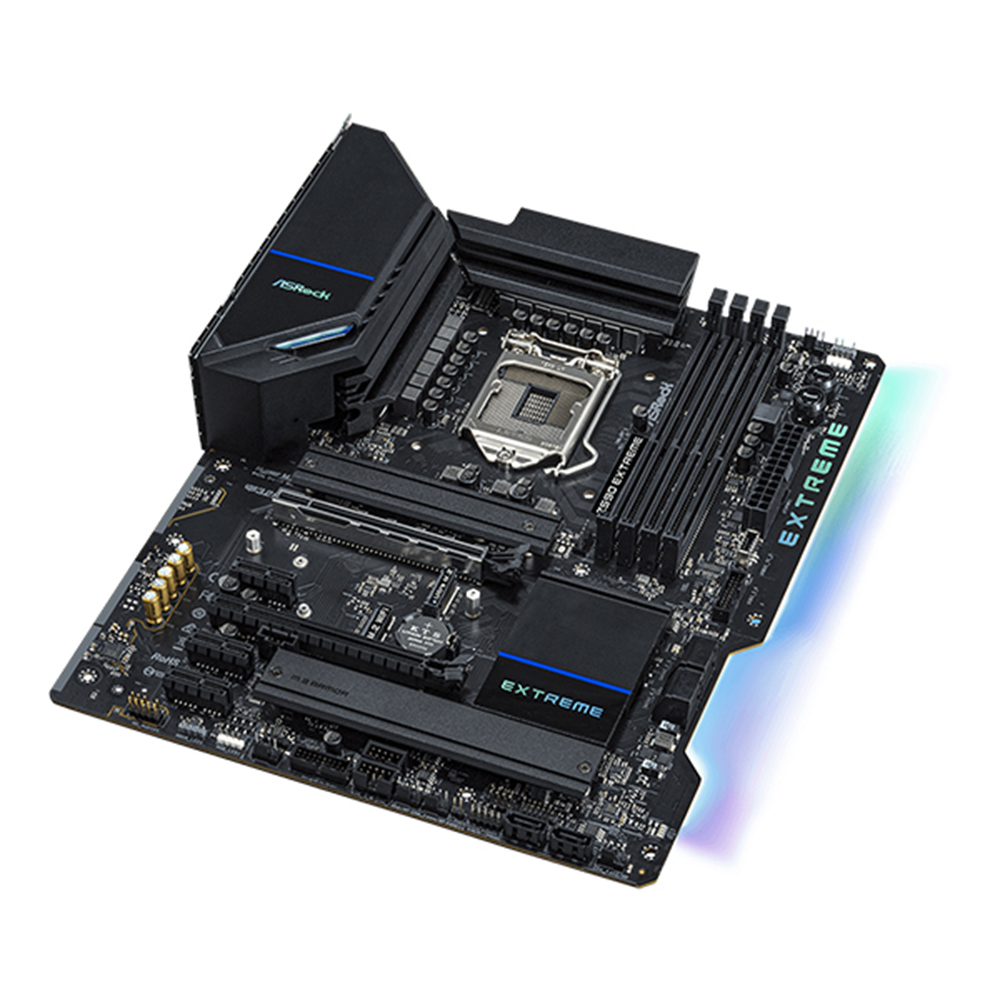

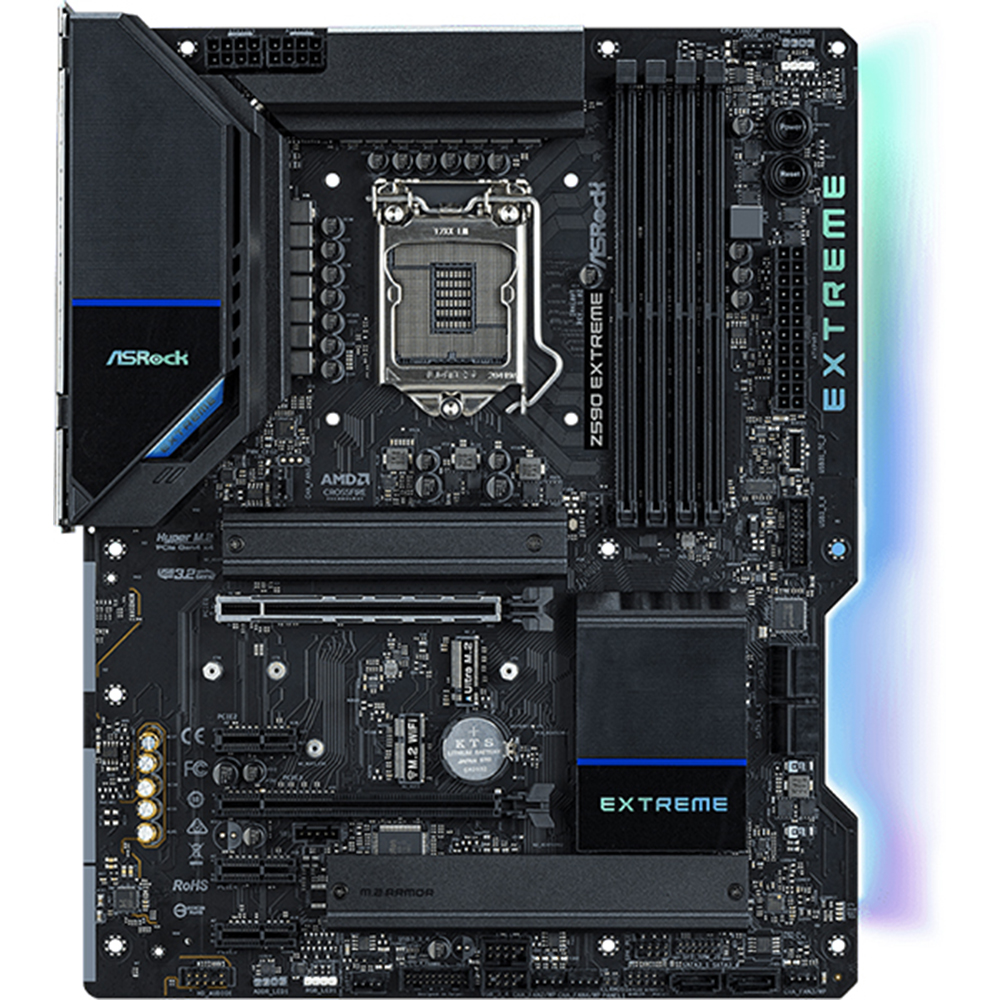

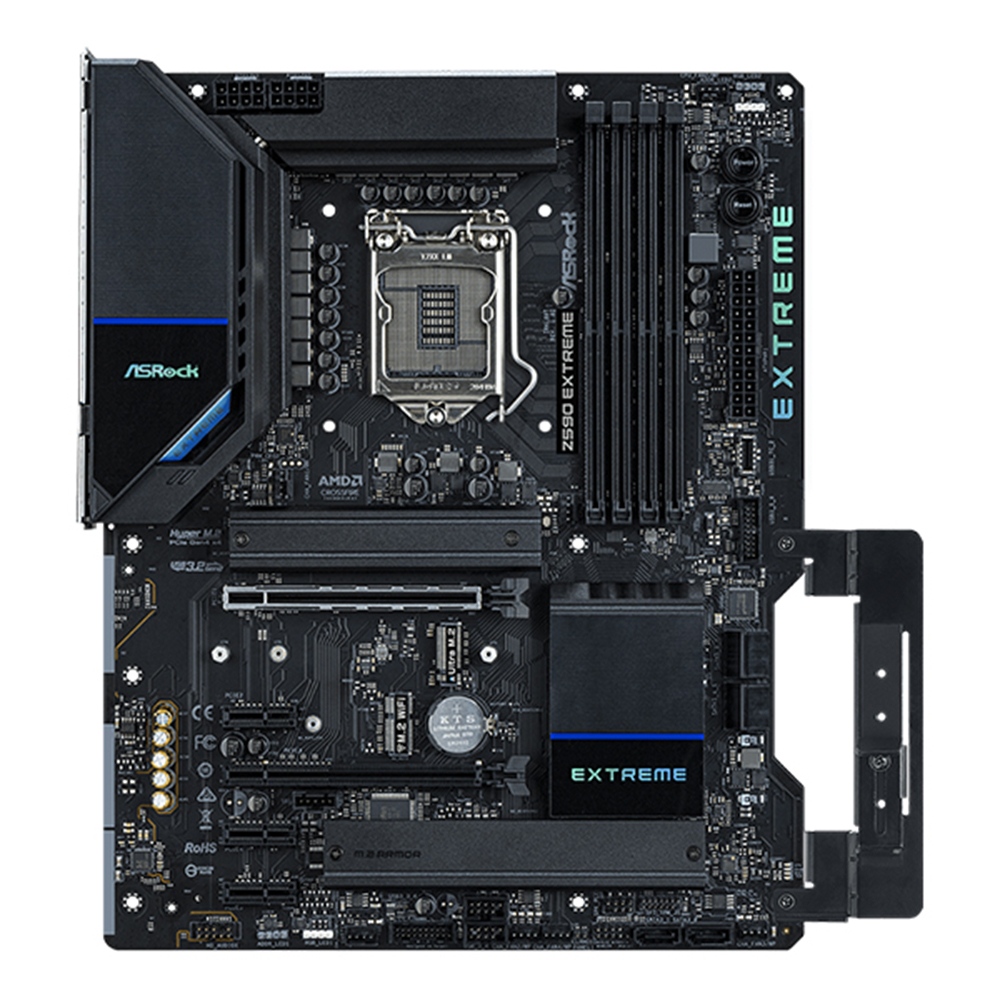

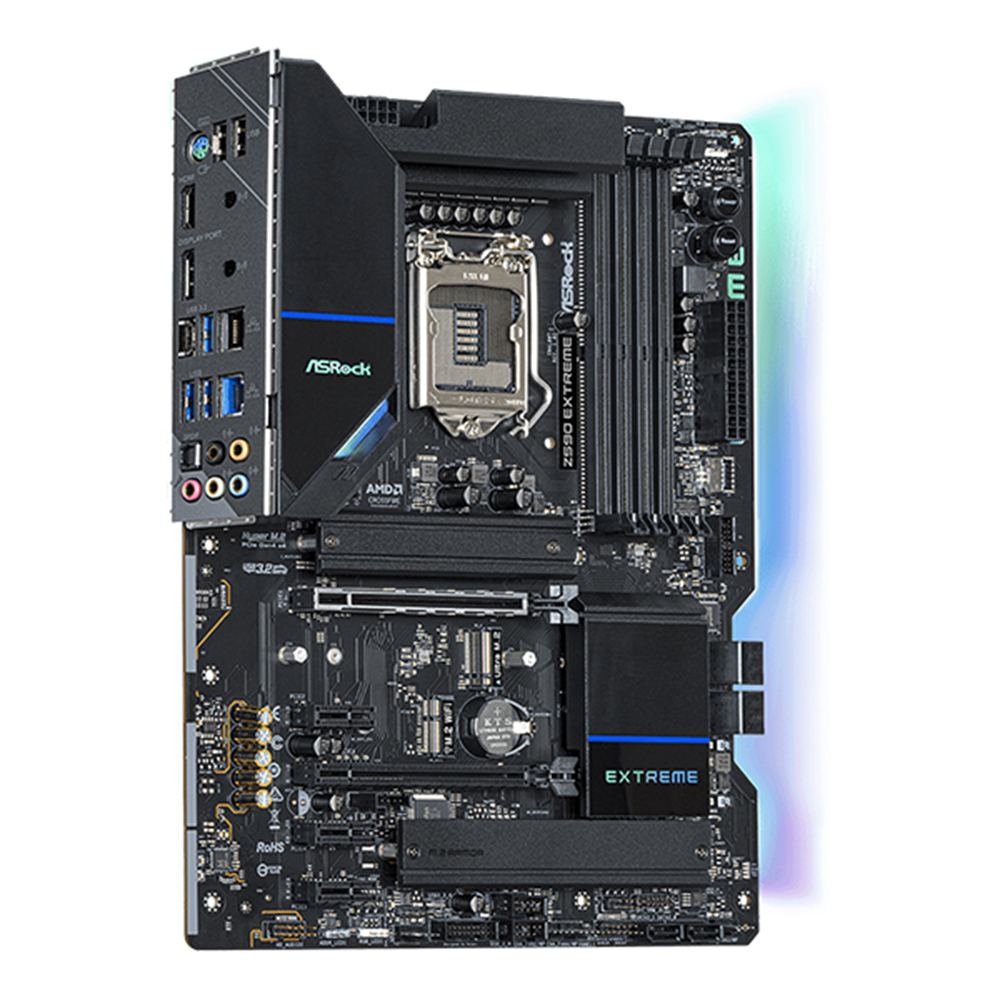

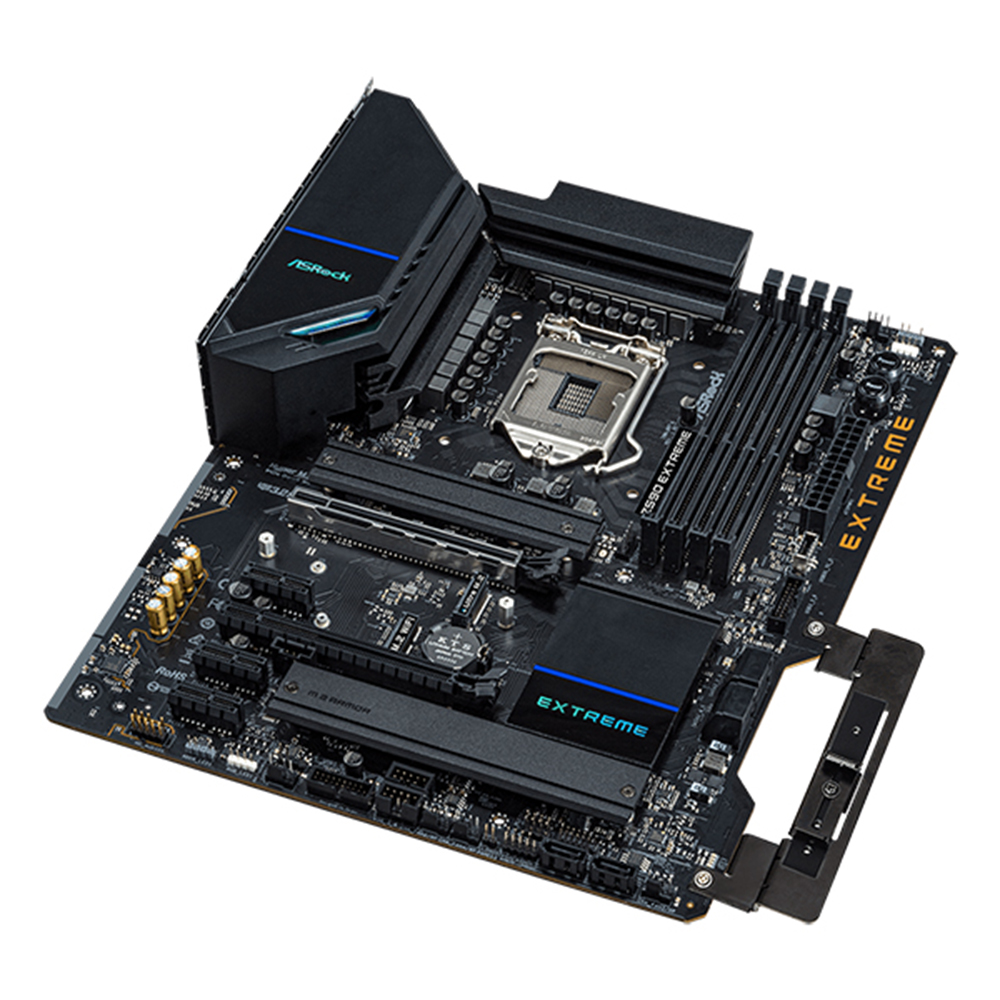

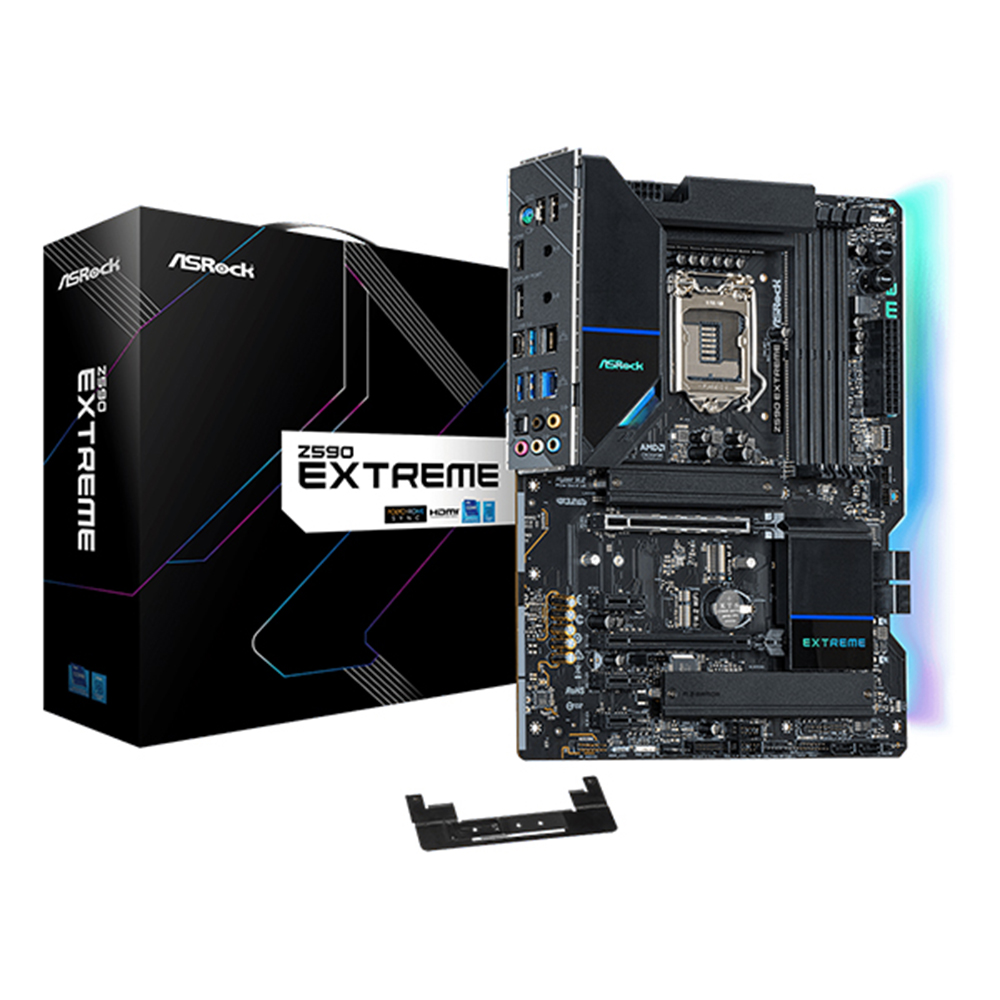

Z590 EXTREME |
Type: |
ATX |
Processors: |
Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200) / Digi Power design / 14 Power Phase design / Supports Intel® Turbo Boost Max 3.0 Technology / Supports Intel® K-Series unlocked CPUs |
Chipset: |
Intel® Z590 |
Memory: | Dual Channel DDR4 Memory Technology / 4 x DDR4 DIMM Slots / 11th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)* / 10th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)* / Supports ECC UDIMM memory modules (operate in non-ECC mode) / Max. capacity of system memory: 128GB** / Supports Intel® Extreme Memory Profile (XMP) 2.0 / 15μ Gold Contact in DIMM Slots |
Disk Support: | 6 x SATA3 6.0 Gb/s Connectors* / 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel® Core™ processors only)** / 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** / 1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** |
Expansion ports: | 1th Gen Intel® Core™ Processors / 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))* / 10th Gen Intel® Core™ Processors / 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE3))* / 3 x PCI Express 3.0 x1 Slots / Supports AMD Quad CrossFireX™ and CrossFireX™ / 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) / 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
Internal connections: | 1 x SPI TPM Header / 1 x Power LED and Speaker Header / 2 x RGB LED Headers* / 2 x Addressable LED Headers** / 1 x CPU Fan Connector (4-pin)*** / 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** / 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** / 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) / 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) / 1 x Front Panel Audio Connector (15μ Gold Audio Connector) / 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) / 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) / 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) / 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection) / 1 x Power Button with LED / 1 x Reset Button with LED |

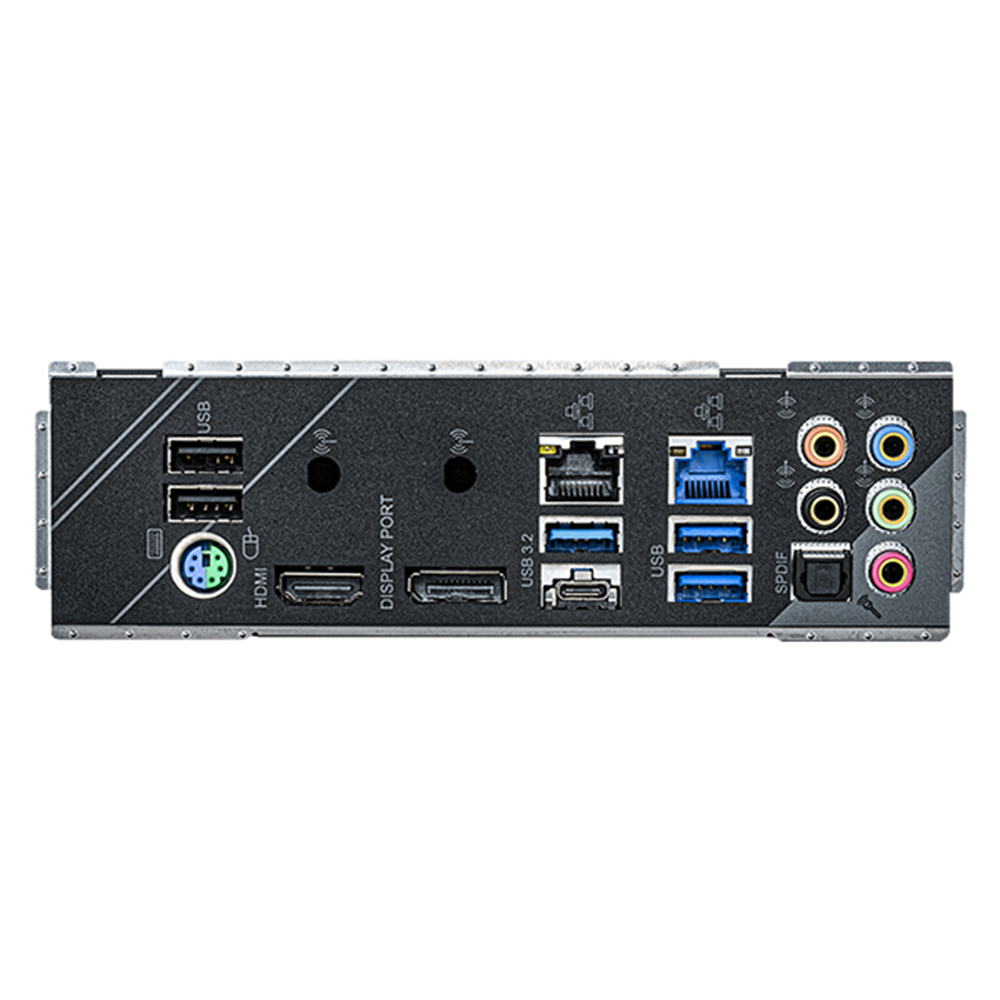

External connections: | 2 x Antenna Mounting Points / 1 x PS/2 Mouse/Keyboard Port / 1 x HDMI Port / 1 x DisplayPort 1.4 / 1 x Optical SPDIF Out Port / 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)* / 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)* / 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)* / 2 x USB 2.0 Ports (Supports ESD Protection) / 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) / HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
Graphics: | 11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics / Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 / Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, UHD/HDR Blu-ray Disc / Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers / Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz / Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096×2304) @ 60Hz / Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) / Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports |
Built-in sound: | 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) / Premium Blu-ray Audio support / Supports Surge Protection / Pure Power-In / Direct Drive Technology / PCB Isolate Shielding / Impedance Sensing on Rear Out port / Individual PCB Layers for R/L Audio Channel / Gold Audio Jacks / 15μ Gold Audio Connector / Nahimic Audio |
Built-in network card: | 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) / Supports Dragon 2.5G LAN Software / Smart Auto Adjust Bandwidth Control / Visual User Friendly UI / Visual Network Usage Statistics / Optimized Default Setting for Game, Browser, and Streaming Modes / User Customized Priority Control / Supports Wake-On-LAN / Supports Lightning/ESD Protection / Supports Energy Efficient Ethernet 802.3az / Supports PXE /1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V) / Supports Wake-On-LAN / Supports Lightning/ESD Protection / Supports Energy Efficient Ethernet 802.3az / Supports PXE |
Operating system: | Microsoft® Windows® 10 64-bit |
Warranty: | 3 years |
