EVGA 700W BR 80+ Bronze


Brand: EVGA
Model: 700 BR
Watt: 700W
Certificate: 80  Bronze Plus
Cable Management: No Modular
Warranty: 2 years

Out of stock



700 BR
Power Supply
Overall Performance: 700 W
AC Input Voltage: 100-240V
AC Input Frequency: 50-60 Hz
Input Current: 10 A
Combined Current (+ 3.3V): 150 W
Combined Electricity (+ 12V): 699.6 W
Combined Current (+ 5V): 150 W
Combined Current (-12V): 3.6 W
Combined Current (+ 5Vsb): 15 W
Output Current (+ 3.3V): 20 A
Output Current (+ 12V): 58.3 A
Max Output Current (+ 5V): 20 A
Output Current (-12V): 0.3 A
Output Current (+ 5Vsb): 3 A
Efficiency: 85%

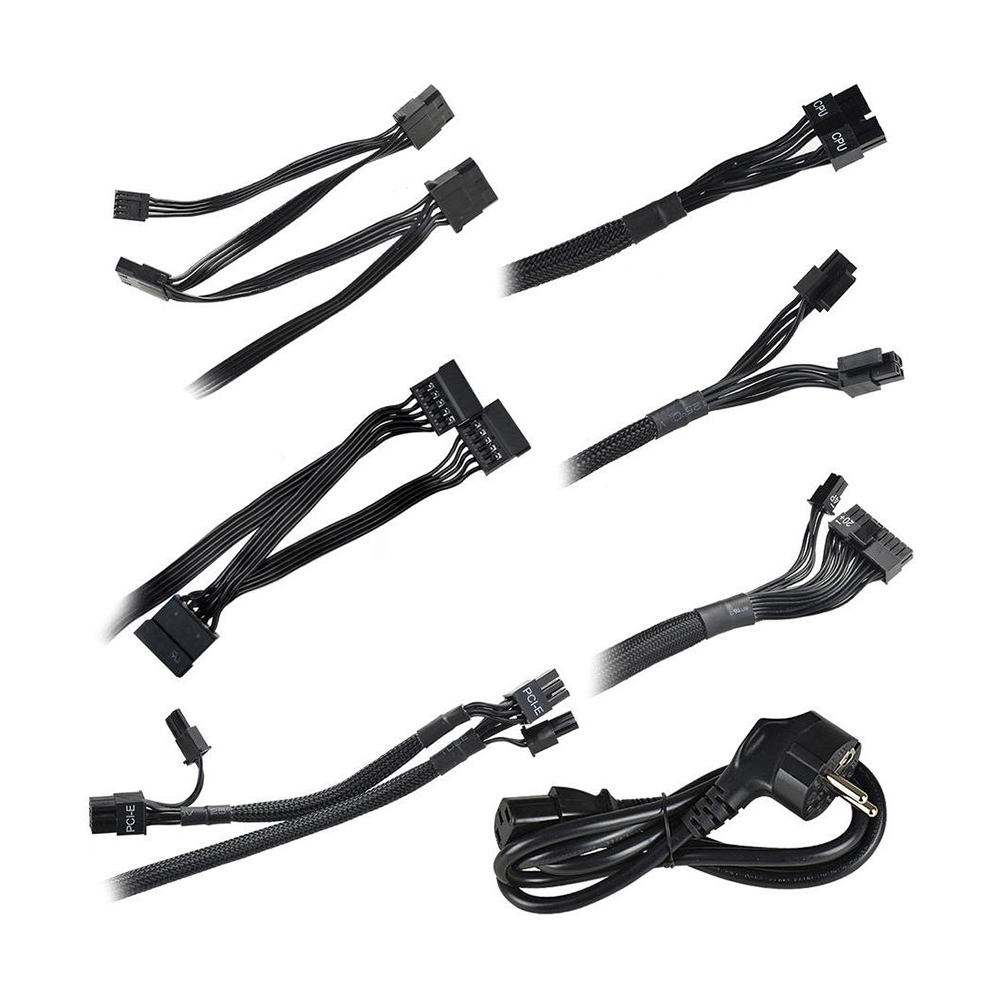

Motherboard Connector: 24-pin ATX
Power Cable Length Motherboard: 55 cm
Number Of SATA Power Connectors: 9
SATA Power Cord Length: 450,570,690 mm
Number Of Molex Connections 4pin: 3
Peripheral (Molex) Power Cord Length: 450,570,690 mm
EPS Power Connector (8-pin): Yes
Number of PCI Express Power Connectors 6 + 2pin: 4th
PCI Express Power Cord Length: 67 cm
ATX Power Plug (24-pin): Yes
Floppy Drive Power Connection: 1
Cable Length Of The Floppy Disk Drive: 81 cm
Floppy Drive Connector: Yes
Power Supply Unit (PSU) Form Factor: ATX
80 Plus Certification: 80 Plus Certification
Mean Time Between Failures (MTBF): 100,000 h
Certification: TUV, CB, CE, FCC, RCM, cTUVus, WEEE
Product Color: Black
Cooling: Active
Fan Diameter: 12 cm
Number Of Fans: 1 fan
Operating Temperature Range: 0 – 30 ° C
Sustainability Certificates: RoHS
Dimensions(W x D x H): 150 x 140 x 85mm
Weight: 1.81 kg
Warranty: 2 years
Additional information


Cable Managment

No Modular


80 Plus Bronze
