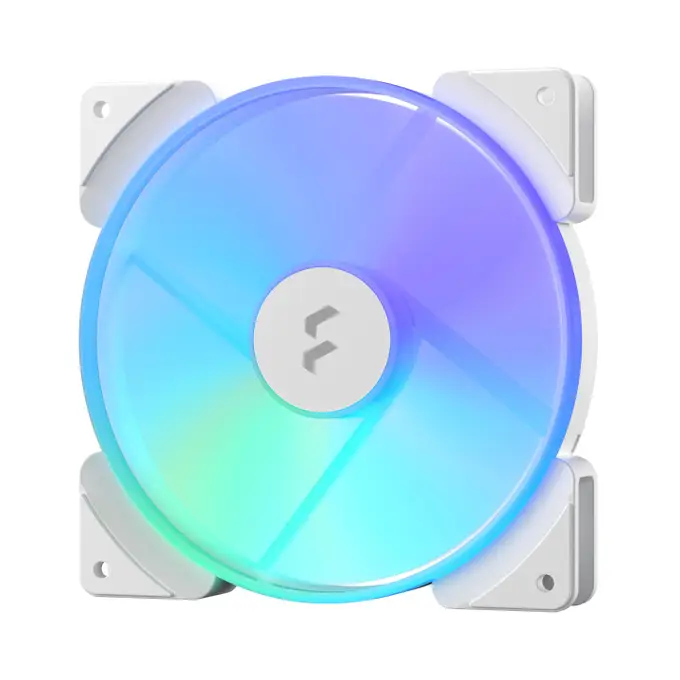

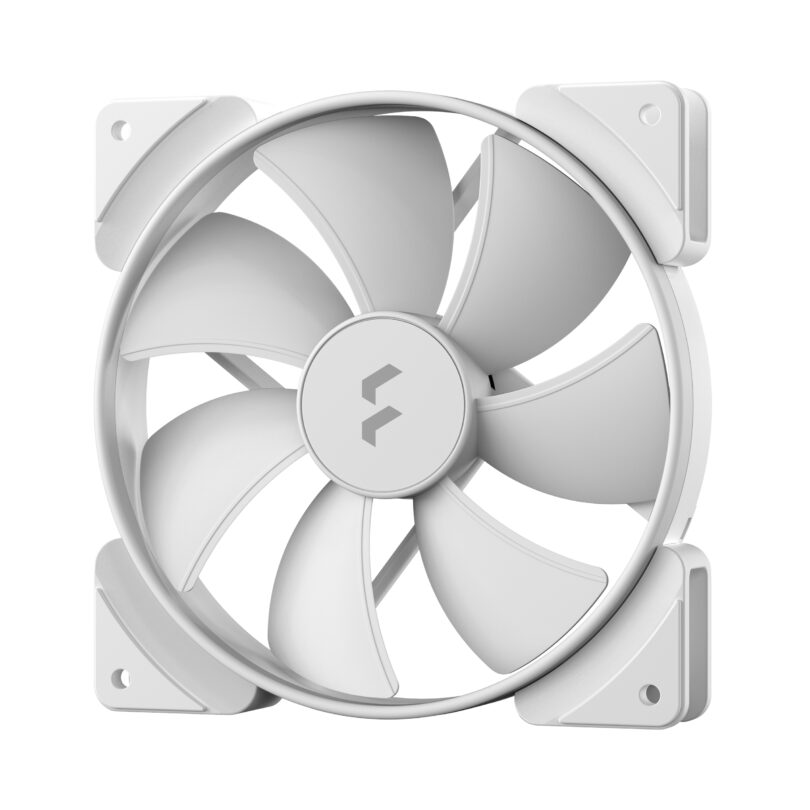

Fractal Prisma AL-14 PWM

Description

• Size
  140 x 140 x 25 mm
• Screw hole pattern
  125 x 125 mm
• Fan connector
  4-pin PWM
• RGB connector
  3-pin 5V addressable RGB
• Bearing
  LLS
• Number of blades
  7
• Rotational speed
  500 – 1700 RPM
• Noise level
  34.1 dB(A)
• Airflow (CFM)
  103.85 CFM
• Airflow (m3/h)
  176.44 m3/h
• Static pressure
  2.38 mmH2O
• Fan input power
  2.16 W
• Fan max input current
  0.18 A
• Fan input voltage
  12 V
• Fan starting voltage
  7 V
• LED input power
  1.50 W
• LED max input current
  0.30 A
• LED input voltage
  5 V
• Low (0-20%) PWM speed
  500 RPM
• Low PWM noise level
  15.1 dB(A)
• Low PWM airflow
  31.67 CFM
• Low PWM static pressure
  0.44 mmH2O
• MTBF
  100,000 hours
• Fan weight
  200 g
• Cable length
  500 mm
• Cable type
  Black sleeved
