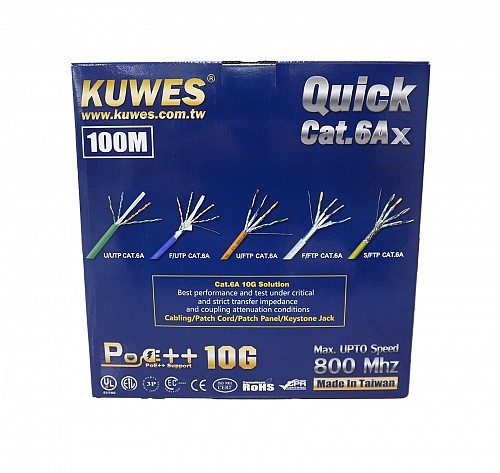

Kuwes CAT6A UTP Pure Copper Indoor 100m Grey

onductor: Material / Size   Bare copper / 23AWG

Insulation:

• HDPE
• Min. Avg. Thickness: 0.208 mm;
• Min. Thickness: 0.195 mm

Color Code:

• Pair 1: Blue     & White/Blue;
• Pair 2: Orange  & White/Orange
• Pair 3: Green   & White/Green;
• Pair 4: Brown   & White/Brown

Jacket:

• 75°C PVC Compound
• Min. Avg. Thickness: 0.685 mm;
• Min. Thickness: 0.558 mm
• Approximate O.D.: 7.8 mm +/- 0.3mm

Electric Requirements: (Cable length: 100M)

• Characteristic Impedance(Zo): 85～115Ω (1～800 MHz)
• DC. Resistance Capacitance Unbalance: 5%
• Pair-to-Ground Capacitance Unbalance: 330 pF/100M Max
• Conductor Resistance: 7.32Ω/ 100M  20°C Max
•  Mutual Capacitance: 5600 pF/100m Max
•  Spark Test: Outer Jacket: 2.5KV,  Insulation: 1.75KV, Dielectric Strength: 1.5KV AC/2secs
• Nominal Velocity of Propagation (NVP): 68 %

Temperature Range :

• Installation Temperature  0 to 50°C
• Storage Temperature    -20 to 70°C
• Operation Temperature  -10 to 60°C
