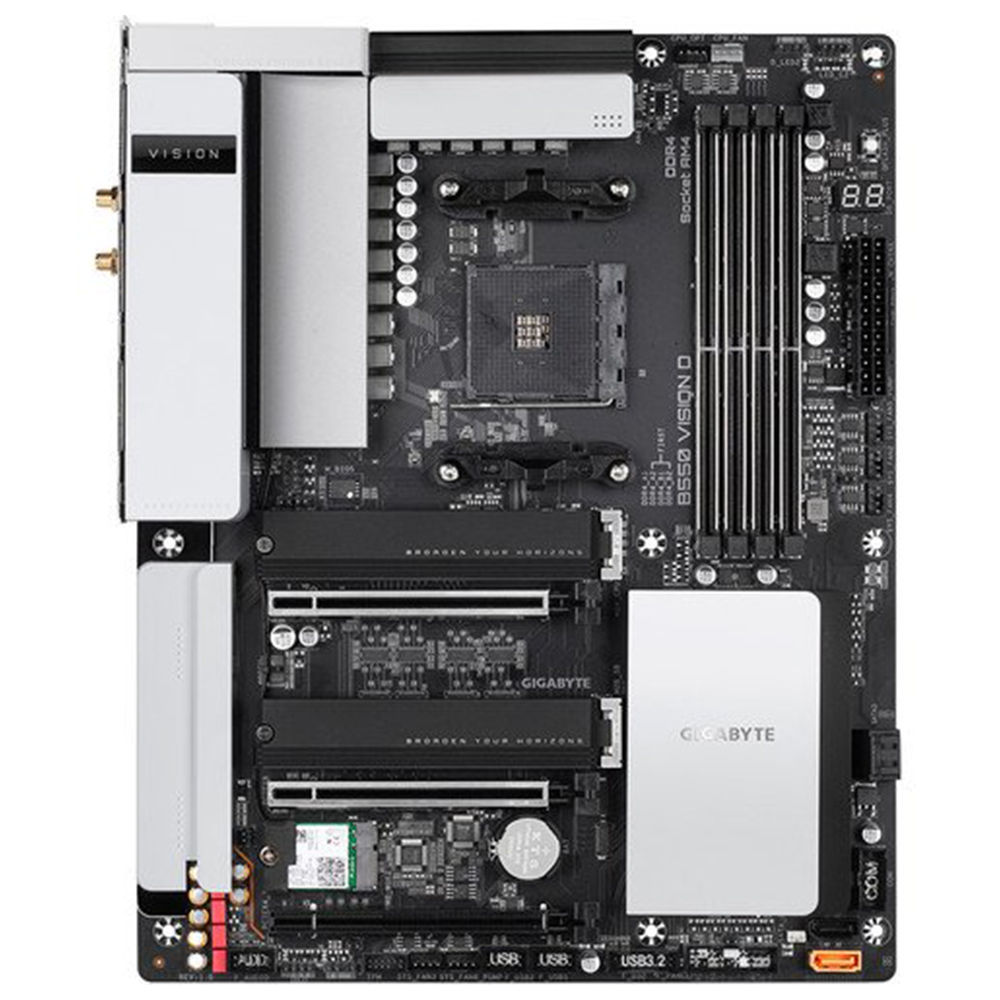

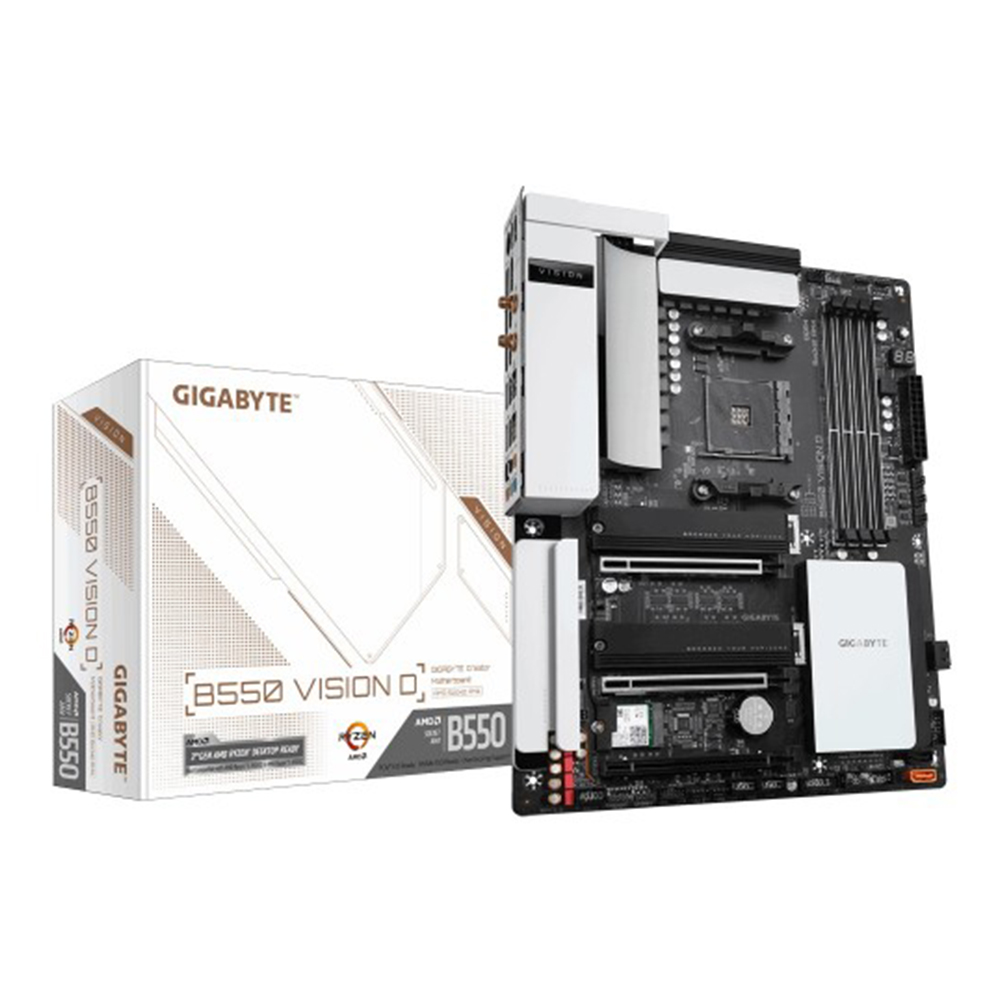

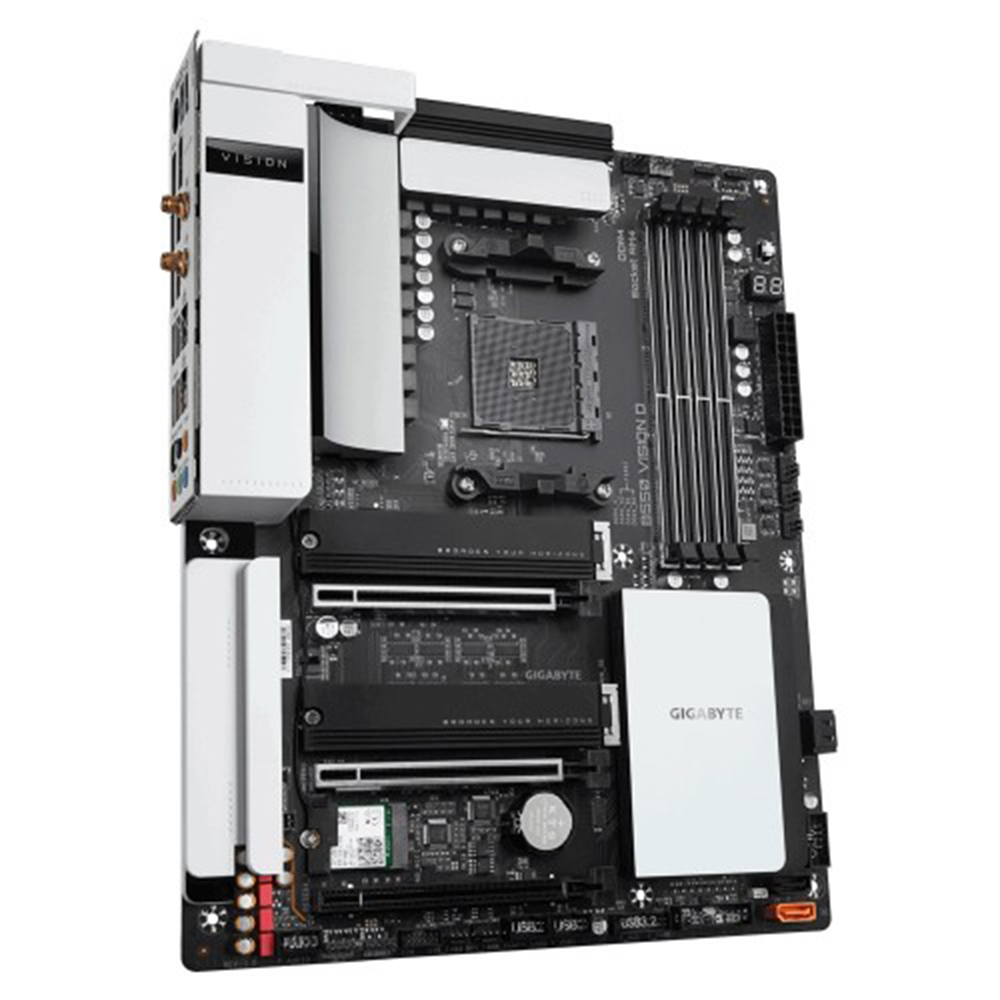

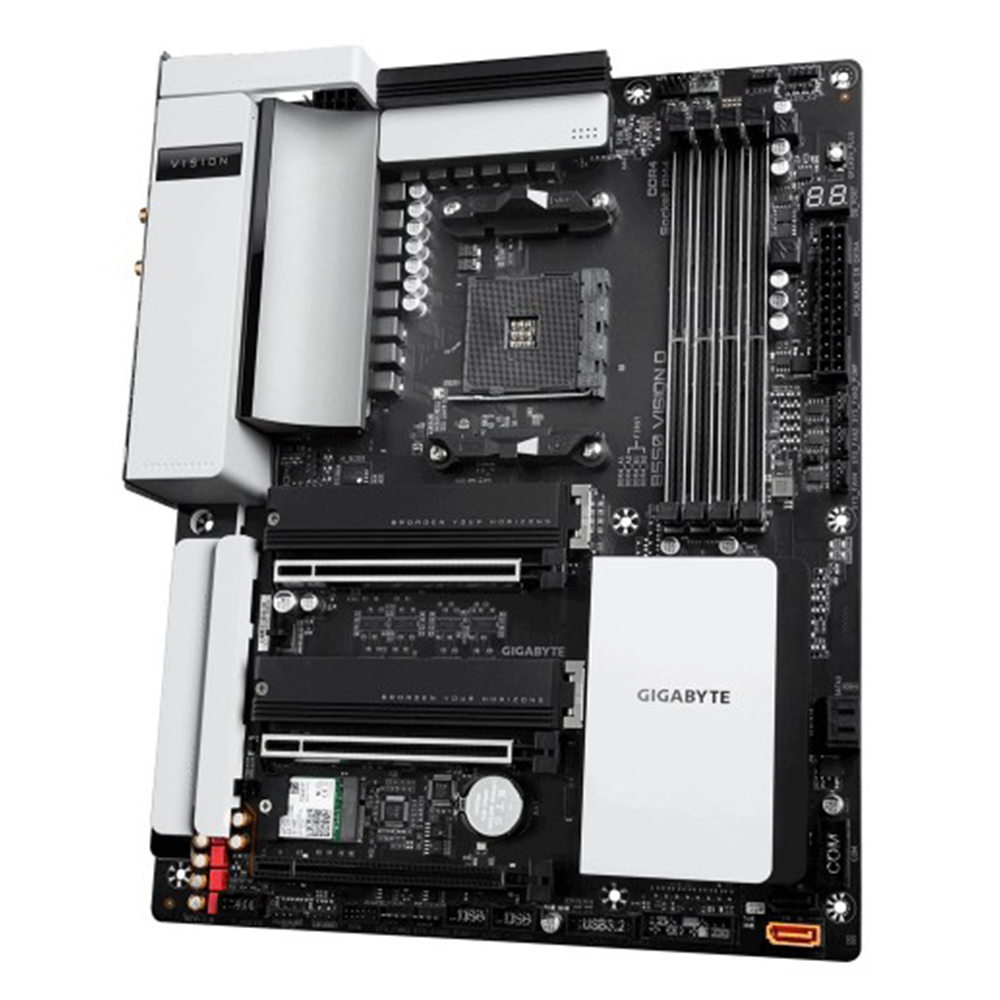

Motherboard Gigabyte B550 Vision D


Brand: Gigabyte
Model: B550 Vision D
Supported CPU: AMD ryzen 5000/ 3rd Generation AMD Ryzen/ 3rd Gen AMD Ryzen with Radeon Graphics
Supported RAM: 4x DDR4 DIMM memory slots, support up to 128GB
Audio: Realtek ALC1220-VB Codec 2/4/5.1/7.1-Channel High Definition Audio / Supports S/PDIF output
LAN: 2x Intel Gbe LAN chips (1000 Mbit/100 Mbit)
Warranty: 2 Years

Out of stock

SKU: B550 VISION D Categories: , ,


B550 Vision D
BIOS Memory Size: 256 Mbit
ACPI version: 5.0
Clear CMOS Jumpers: Yes
Desktop Management Interface (DMI) version: 2.7
System management BIOS (SMBIOS) version: 2.7
Processor Manufacturer: AMD
Processor Socket: AM4
Compatible Processors: AMD Ryzen 5000/ 3rd Generation AMD Ryzen// 3rd Gen AMD Ryzen
Supported RAM: DDR4
Number Of Memory Slots: 4th
Memory Channels: Dual-channel
Supported Memory Speed: 3200/2933/2667/2400/2133 MHz
RAM Memory Maximum: 128 GB
Supported Storage Drives: SSD
RAID Level: 0 / 1 / 10
Maximum Resolution: 5120×2880 pixels
Internal I/O Connections: 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x SATA DOM power connector
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
2 x temperature sensor headers
1 x Q-Flash Plus button

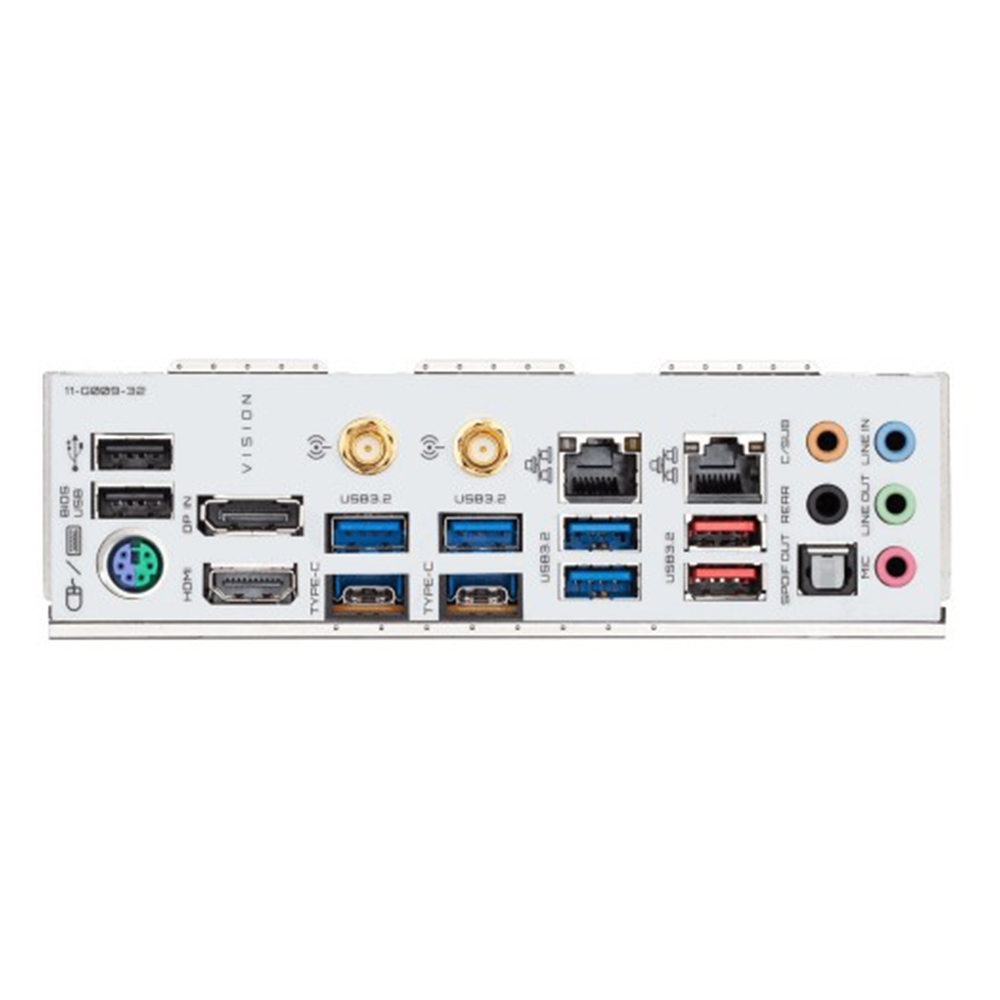

I/O Ports On The Back: 1 x PS/2 keyboard/mouse port
1 x DisplayPort In port
1 x HDMI port
2 x SMA antenna connectors (2T2R)
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x Thunderbolt™ 3 connectors (USB Type-C™ port, with USB 3.2 Gen 2 support)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks

Motherboard chipset family AMD
Motherboard chipset: AMD B550
Audio channels: 2/4/5.1/7.1-channel
PC health monitoring: Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
Expansion Slots: 1 x PCI Express x16 slot (PCIEX16)/ 1 x PCI Express x16 slot (PCIEX8)/ 1 x PCI Express x16 slot (PCIEX4)
LAN: 2x Intel Gbe LAN chips (1000 Mbit/100 Mbit)
Wireless Communication module: Intel Wi-Fi 6 AX200
Warranty: 2 Years
