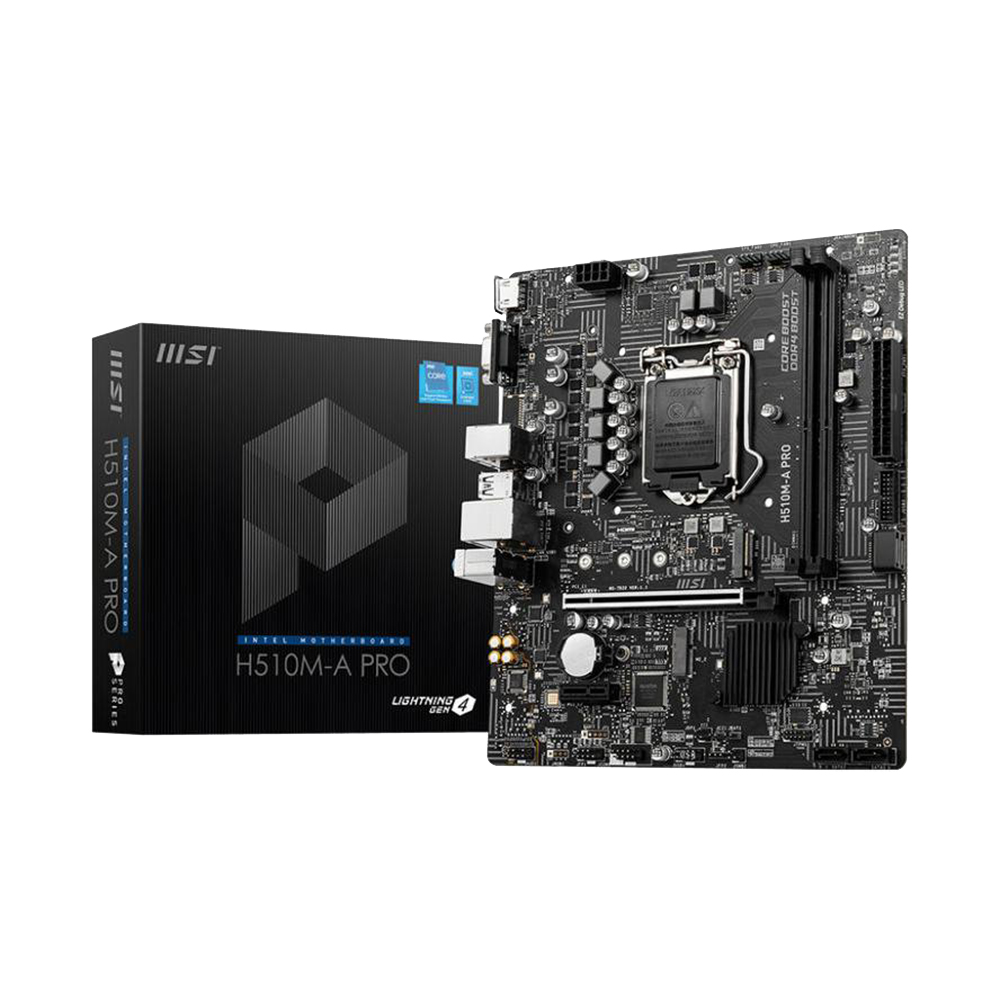

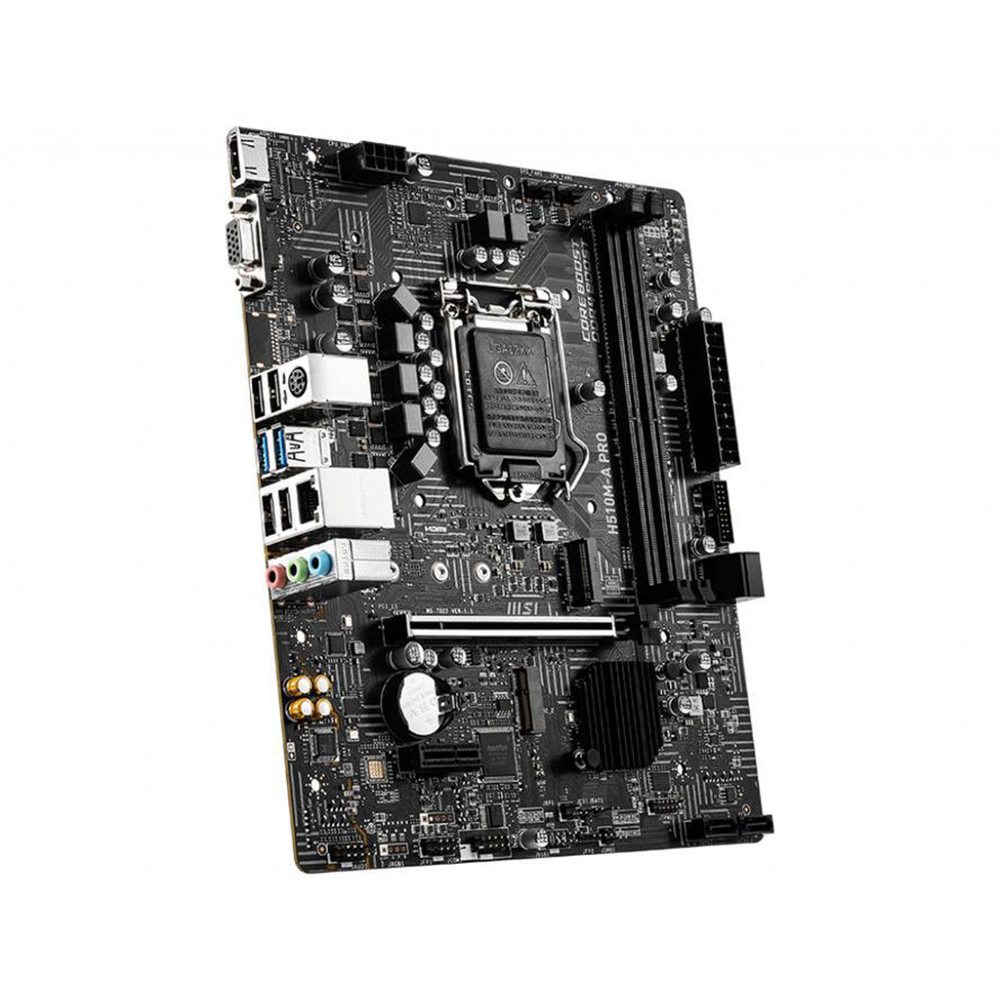

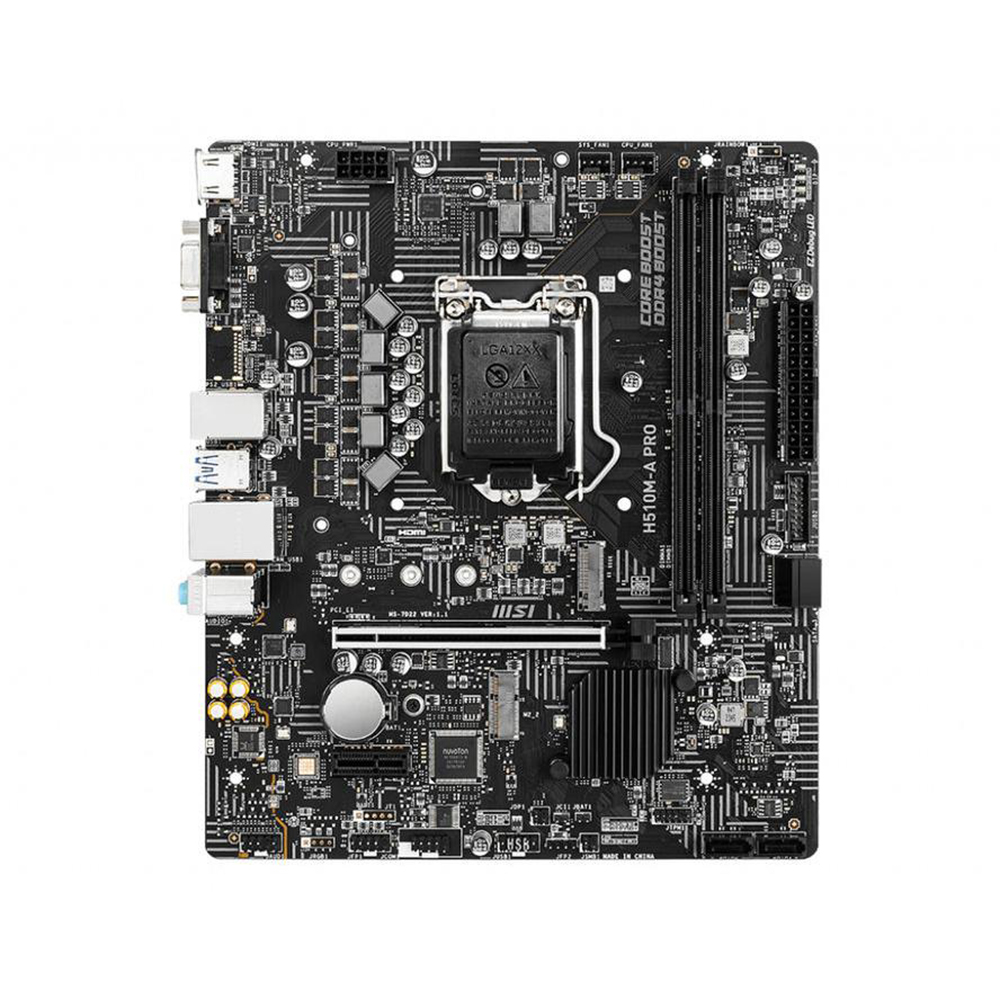

MSI H510M-A Pro 7D22-009R


Brand: MSI
Model:H510M-A Pro
Type: mATX
Processor Socket: Intel LGA 1200
Compatible Processors: Intel Celeron, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium

Out of stock



Brand: MSI
Model: H510M-A Pro
Type: mATX
Processor Manufacturer: Intel
Processor Socket: LGA 1200
Compatible Processors: Intel® Celeron®, Intel Core i5, Intel Core i7, Intel Core i9, Intel® Pentium®
Maximum Number Of SMP Processors: 1
Supported Memory: DDR4 SDRAM
Number Of Memory Slots: 2
Memory Type: DIMM
Memory Channels: Dual Channel
Without ECC: Yes
Supported Memory Speed: 3200(MAX) / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
RAM Memory Maximum: 64GB
Supported Storage Drives: HDD & SSD
Supported Storage Drive Interfaces: M.2,SATA
Number Of Supported Storage Drives: 5
Built-in Graphics Adapters: Yes
Maximum Resolution: 4096×2304 pixels
Number Of Displays Supported: 2
Number Of USB 2.0 Interfaces: 1
USB 3.2 Gen 1 (3.1 Gen 1) Ports: 1
SATA III Connectors: 4
Total Number Of SATA Ports: 4
Front Panel Audio Connector: Yes
ATX Power Connector (24-pin): Yes
Number Of EATX Power Plugs: 1
CPU Fan Connector: Yes
Chassis Intrusion Connector: Yes
Number Of Molex Connectors 4pin 2
EPS Power Connector (8-pin): Yes
TPM Connector: Yes
Serial Port Headers: 1
12V Power Connection: Yes

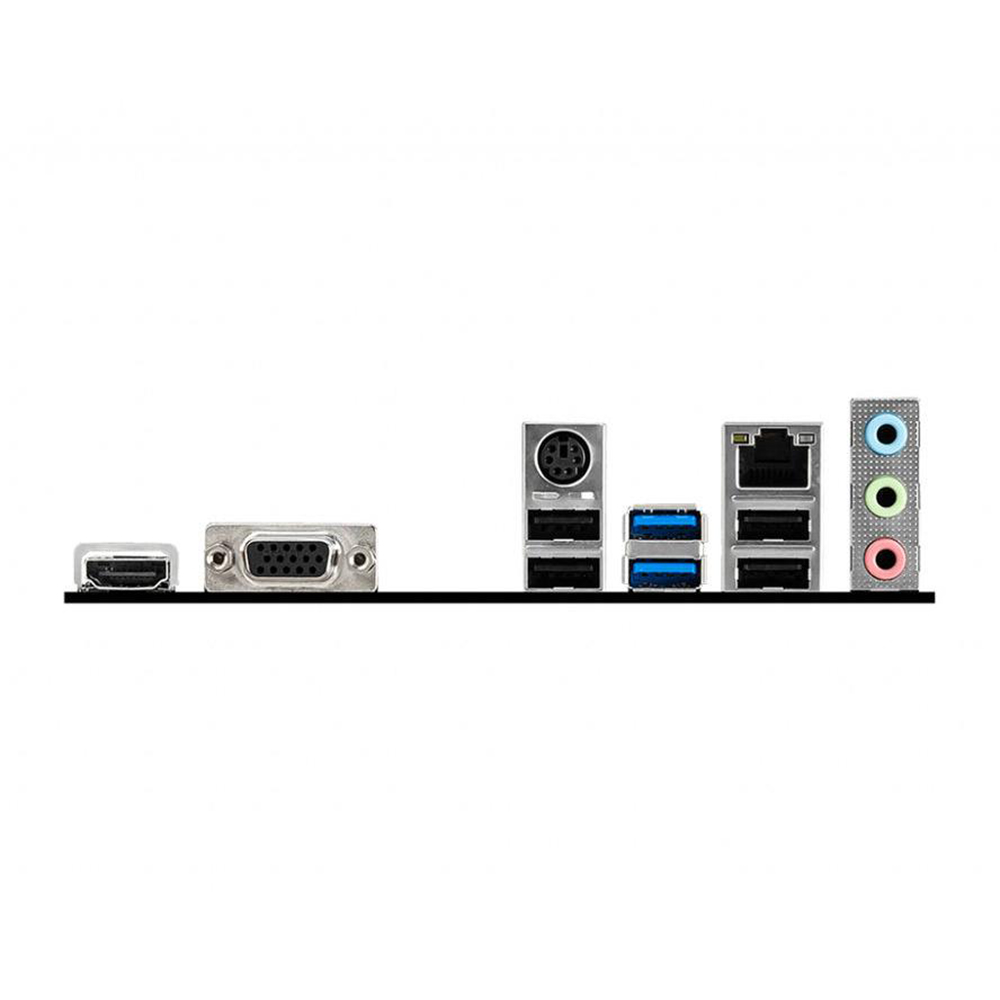

Number Of USB 2.0 Ports: 4
Number Of USB 3.2 Gen 1 (3.1 Gen 1) Type-A Ports: 2
Number Of Ethernet LAN Ports (RJ-45): 1
Number Of PS/2 Connections: 1
Number Of VGA (D-Sub) Connections: 1
Number Of HDMI Ports: 1
HDMI Version: 2.0b
Microphone Input: Yes
USB Plug: USB Type-A
Built-in Ethernet Port: Yes
Ethernet Interfaces Type: Gigabit Ethernet
LAN Controller: Intel® I219-V
Wireless Internet Access: No
Component For: Personal Computer
Motherboard Chipset: Intel H510
Audio Chip: Realtek ALC897
Audio Channels: 7.1 Channels
Energy Source: ATX
Number Of Mounting Holes: 6
Supports Windows Operating Systems: Windows 10 x64
PCI Express x1 (Gen 3.x) Connectors: 1
PCI Express x16 Slots: 1
Number Of M.2 (M) Slots: 1
Supplied Cables: SATA
Drivers:  Included
Dimensions(B x D): 236 x 202
Warranty: 2 year
Additional information





Intel Celeron, Intel Core I3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium


Micro ATX
