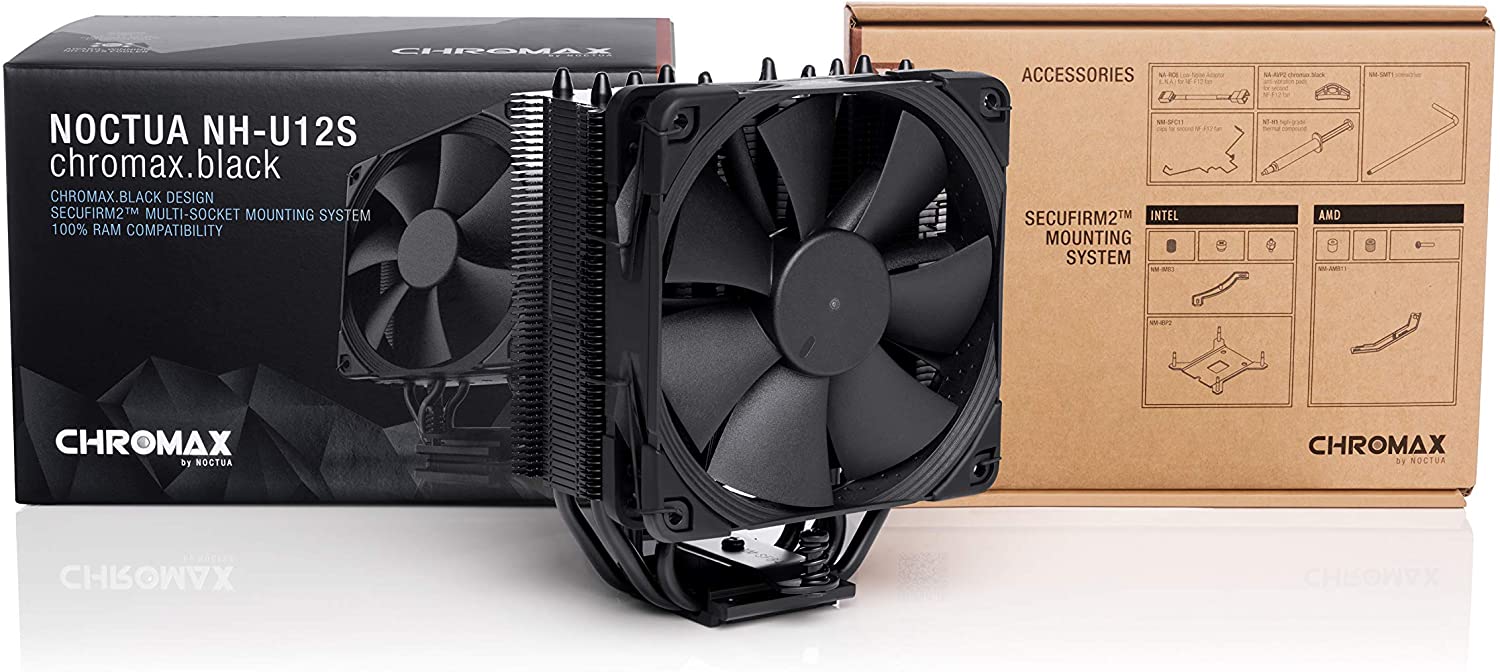

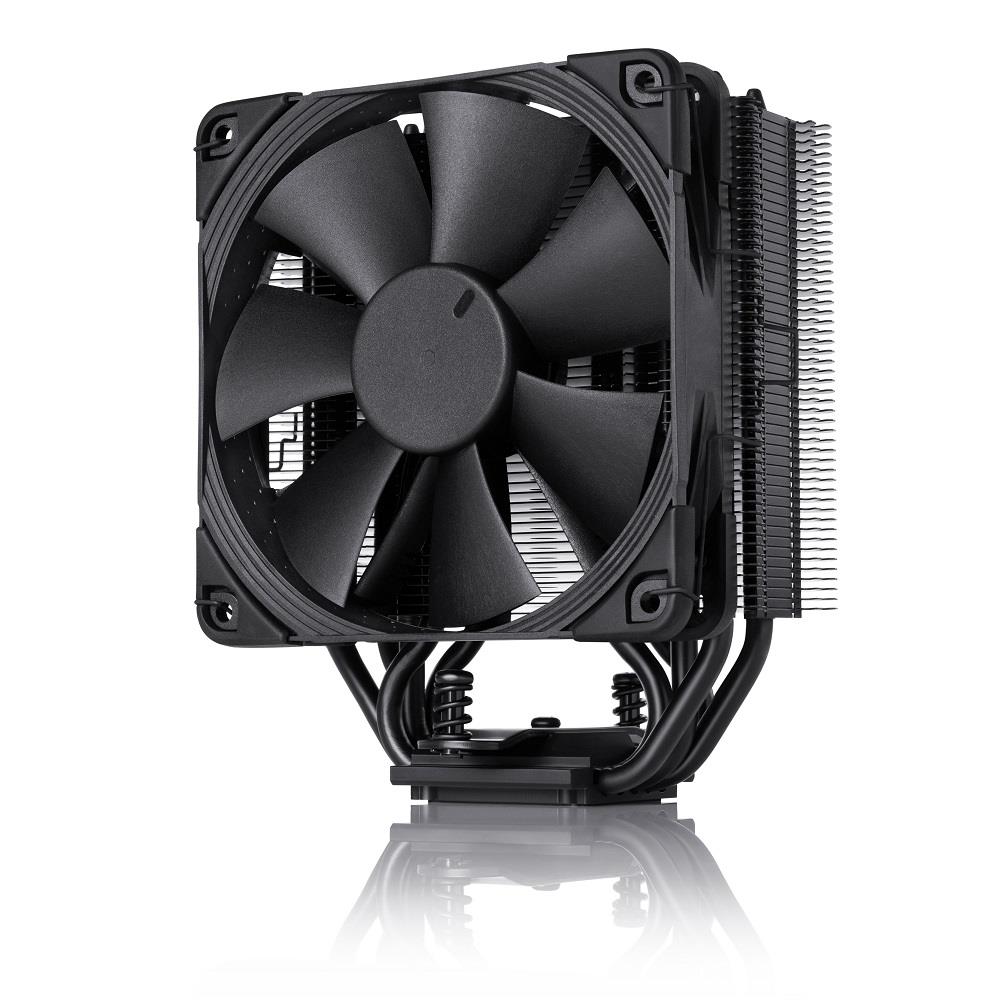

Noctua NH-U12S chromax.Black, 120mm Single-Tower CPU Cooler

FAN Specification

Model Noctua:  NF-F12 PWM chromax.black

Bearing:  SSO2

Max. rotational speed (+/- 10%):  1500 RPM

Max. rotational speed with L.N.A. (+/- 10%):   1200 RPM

Min. rotational speed @ 20% PWM (+/-20%):  300 RPM

Max. airflow:  93,4 m³/h

Max. airflow with L.N.A.:   74,3 m³/h

Max. acoustical noise:  22,4 dB(A)

Max. acoustical noise with L.N.A.:   18,6 dB(A)

Voltage range :  12 V

MTT:   > 150.000 h

Cooler Specification

Socket compatibility:   Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1700 (included since Q4 2021, older coolers require NM-i17xx-MP78), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM4, AM5

Height (without fan):   158 mm

Width (without fan):   125 mm

Depth (without fan):  45 mm

Weight (without fan):  580 g

Height (with fan):  158 mm

Width (with fan):   125 mm

Depth (with fan):  71 mm

Weight (with fan):  755 g

Material:   Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

NSPR:  129

Max.:  TDP see NSPR

Fan compatibility:  120x120x25

Scope of delivery:  Black NH-U12S heatsink

NF-F12 PWM chromax.black premium fan

Low-Noise Adaptor (L.N.A.)

NT-H1 high-grade thermal compound

Black SecuFirm2™ Mounting Kit

Black anti-vibration pads and fan-clips for second NF-F12

Noctua Metal Case-Badge

Warranty 6 Years
