SPECIFICATIONS
| HARDWARE FEATURES | |
|---|---|

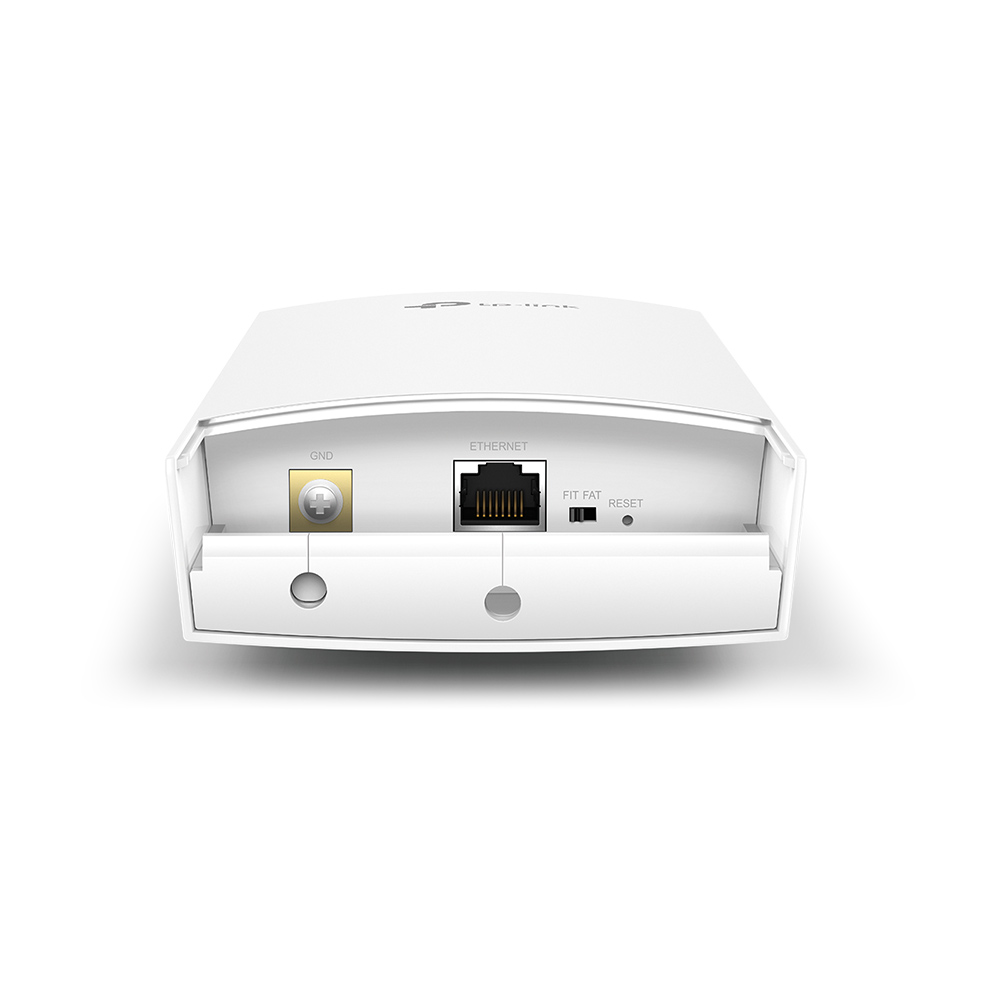

| Interface | 1 Fast Ethernet (RJ45) Port（Support IEEE802.3af PoE） |
| Button | Reset, FIT/FAT |
| Power Supply | PoE(IEEE 802.3af) |
| Power Consumption | 4.42W |
| Dimensions ( W x D x H ) | 8.2 × 3.7 × 1.7 in (209 × 95 × 42.6 mm) |
| Antenna Type | 2×5dBi External Omnidirectional Waterproof |
| Mounting | Pole/Wall Mounting (kits included) |
| Watch Dog | Yes |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11n/g/b |
| Frequency | 2.4GHz |
| Signal Rate | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| Transmission Power | CE：≤19dBm |
| SOFTWARE FEATURE IN FAT MODE | |
|---|---|
| Wireless Functions | Multiple SSIDs (Up to 8) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) WDS |
| Wireless Security | Wireless MAC Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK |
| SOFTWARE FEATURES IN FIT MODE | |
|---|---|
| Wireless Functions | Multiple SSIDs (Up to 8) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS（WMM） Reboot Schedule Wireless Statistics based on SSID/AP/Client Load Balance |
| Wireless Security | Captive Portal Authentication MAC Address Authentication Wireless Isolation Between Clients SSID to VLAN Mapping WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | 300 Mbps Wireless N Outdoor Access Point CAP300-Outdoor,External antennas, Mounting Kits, Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 MAC OS, NetWare, UNIX or Linux |
| Environment | Operating Temperature: -30℃~65℃ (-22℉~149℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
