SPECIFICATIONS

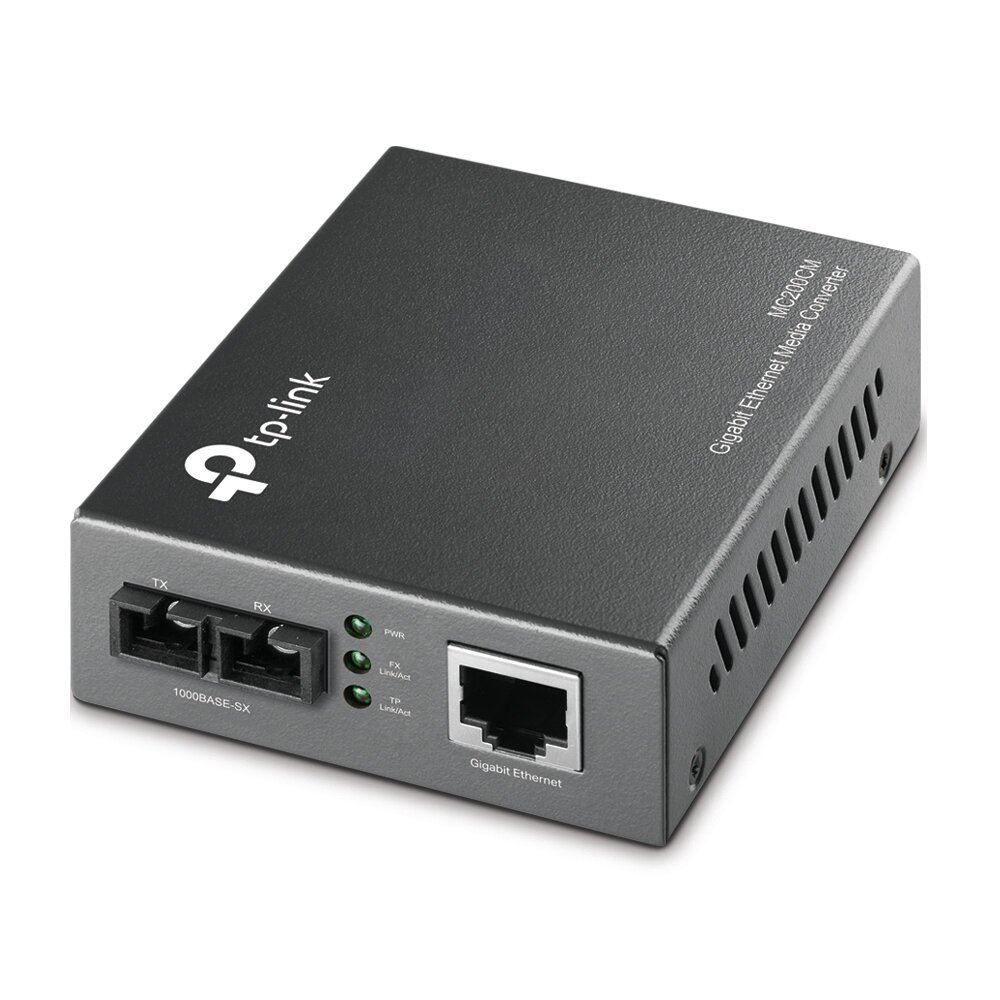

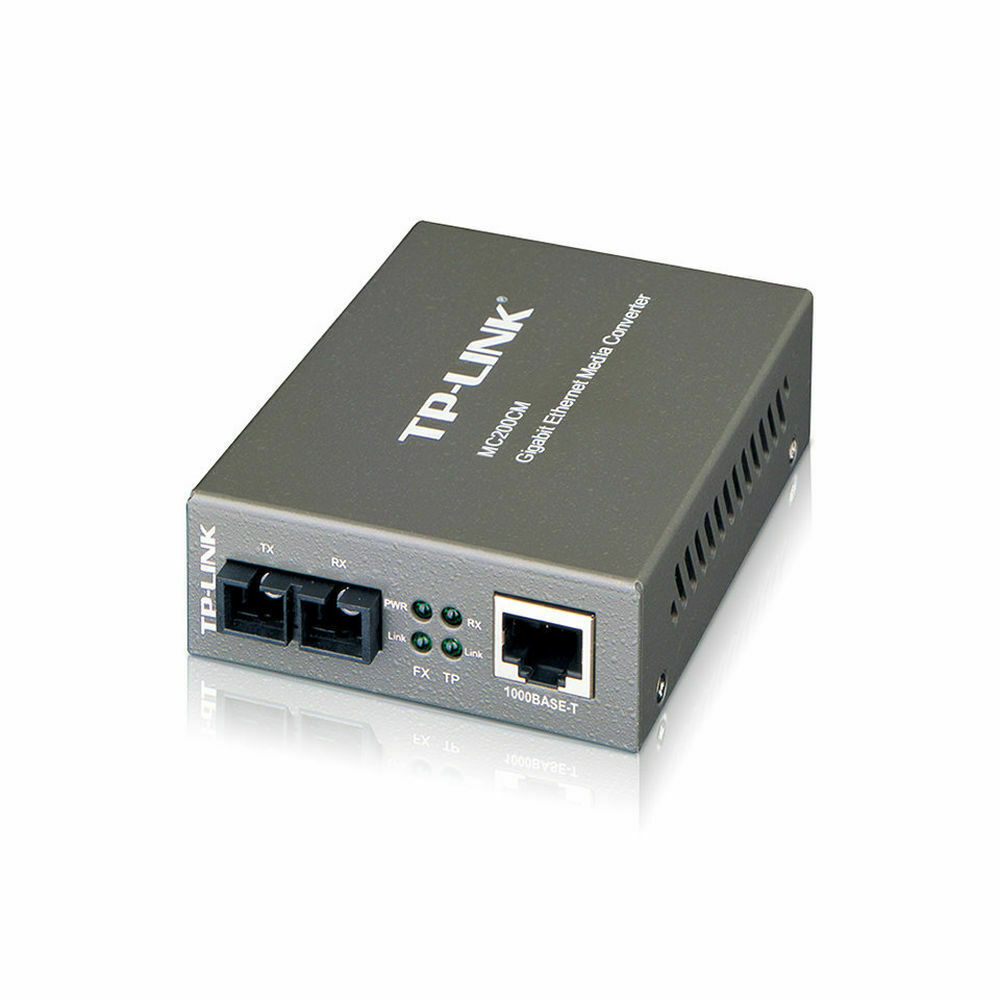

| Device Type | Fibre media converter |
| Form Factor | External |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-SX, 1000Base-T |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 550 m |
| Status Indicators | Power, receive, link/activity |
| Features | Flow control, auto-uplink (auto MDI/MDI-X), full duplex mode |
| Compliant Standards | IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x |
| Interfaces | 1 x Ethernet 1000Base-T – RJ-45 female ¦ 1 x Ethernet 1000Base-SX – SC multi-mode female x 2 |
| Compliant Standards | FCC |
| Power Device | External power adapter |
| Width | 9.5 cm |
| Depth | 7.3 cm |
| Height | 2.7 cm |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 – 90% |
| Designed For | P/N: TL-MC1400 |
