SPECIFICATIONS

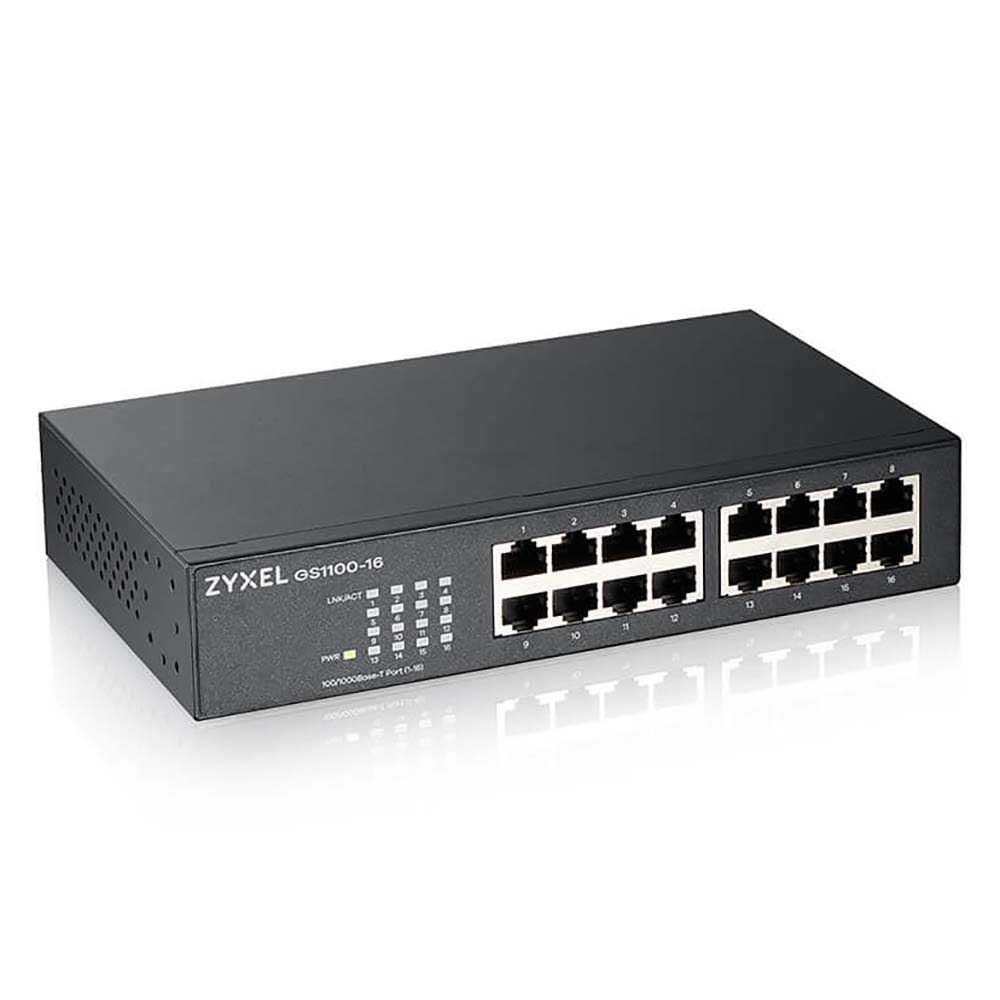

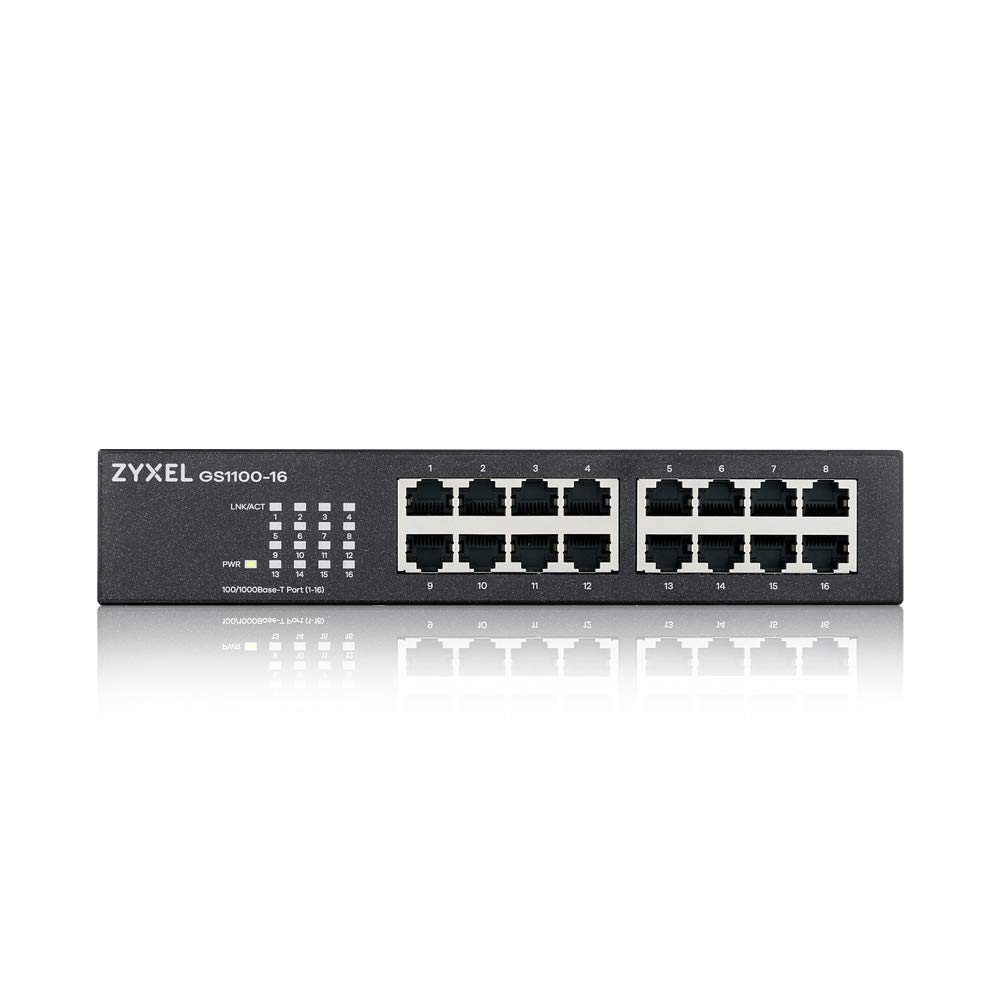

| Model | GS1100-16 |
| Input | 16-port GbE Unmanaged Switch |
| Port Density | |
| Total port count | 16 |
| 1000BASE-T | 16 |
| 1000BASE-T PoE | – |
| Open SFP slot (GbE) | – |
| Performance | |
| Switching capacity (Gbps) | 32 |
| Switching forwarding rate (Mpps) | 23.8 |
| Packet buffer (byte) | 256 K |
| MAC address | 8 K |
| Jumbo frame (byte) | 9 K |
| Auto MDI/MDI-X | Yes |
| 802.1p CoS | Yes |
| Broadcast storm control | Yes |
| VLAN packet pass-through | Yes |
| Power | |
| Input voltage | 100 – 240 V AC, 50/60 Hz |
| Power supply | Internal |
| Maximum power consumption (watt) | 8.5 |
| PoE power budget (watt) | – |
| Physical Specifications | |
| Dimensions (WxDxH)(mm/in.) | 215 x 133 x 42/ 8.46 x 5.24 x 1.65 |
| Weight (kg/lb.) | 0.92/2.28 |
| Environmental Specifications | |
| Operating temperature | 0°C to 50°C/32°F to 122°F |
| Storage temperature | -40°C to 70°C/-40°F to 158°F |
| Operating humidity | 10% to 90% (non-condensing) |
| MTBF (hr) | 1,297,212 |
| Heat dissipation (BTU/hr) | 28.99 |
